Product specifications
WuT 81025

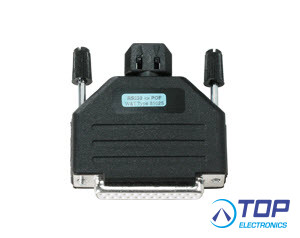

Interface Fiber optic <> RS232 with 25-pin SUB-D-female
The model 81025 Interface transmits serial RS232 data via plastic duplex fiber over a distance of up to 100 meters. The converter powers itself from the serial port and so usually requires no additional power supply.
The interface type described on this page is powered from the signal lines of the serial interface and generally requires no external power supply to operate on standard RS232 interfaces.
If however there are supply problems due to low-power interfaces, it is always possible to externally power the interface with up to 9V using its handshake inputs, or to use fiber-optic interfaces having their own power supply (e.g. model 81201).
With model 81029 there is also a 9-pin special version whose maximum transmission distance is limited to 20 meters, but which only loads the connected RS232 interface with a current of approx. 2mA. With this version it is also possible to operate on less-powerful RS232 interfaces without having to connect a separate power source.
Product properties:
Conversion from RS232 to fiber-optic cable
Easier installed than any copper cable, thanks to patented FOC adapter
The interface is very easy to install:
100% protection against interfering radiation
No re-configuration of transmission parameters required
Electrical isolation
Lightning protection
Technical data:
Connections and displays:
- Serial port: RS232 Interface, 25-pin SUB-D female with DCE pinout
- Fiber-optic cable adapter: socket with automatic interlocking of the fiber-optic cable
- Baud rate: 110..115,200 baud
- Data format: any format
- Supported signals: RxD, TxD
- Maximum distance: typ. 100 meters fiber optics cable (when operating on RS232 ports with MC1488 driver chips and with handshake lines connected)
- Power supply: Generally from the RS232 signals, For low-power versions of the serial port external supplying of the interfaces via handshake inputs with up to 9V DC is possible
- Fiber-optic medium: Duplex plastic optical fiber cable, Dimensions 2.2 x 4.4mm with a fiber diameter of 1mm, Material: core: PMMA, cladding: PE
- Wavelength: approx. 660nm
Housing and other data:
- Housing: SUB-D adapter housing
- Enclosure rating: IP40
- Weight: approx. 30g
- Ambient temperature: Storage: -40..+70°C, Operation: 0..+50°C
- Scope of delivery: Interface plastic fiber optics <> RS232, 25-pin DCE, Mini Gender Changer male/male
