Product specifications
YCGO006AA

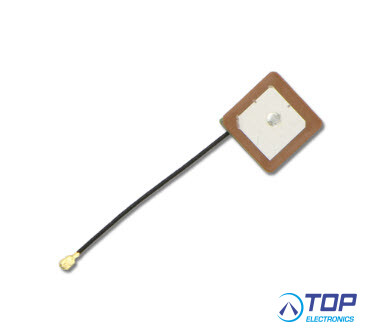

GNSS L1 Cable Mount Antenna
This GNSS L1 embedded ceramic antenna is connected to the host device via a cable and IPEX connector. By using the main device PCB as its ground plane, this antenna is suitable for many tracking applications. We provide comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs.
Key Features:
- Optimized for GNSS L1
- Pin mounted ceramic
- IPEX MHF 1 connector
Frequency band: 1559-1577MHz
Dimensions: 18mm × 18mm × 6.3mm
Cable length: 50mm
RHCP
- Quectel Wireless Solutions product -
