Product specifications
YCGS008AA
L1 GNSS SMD Antenna

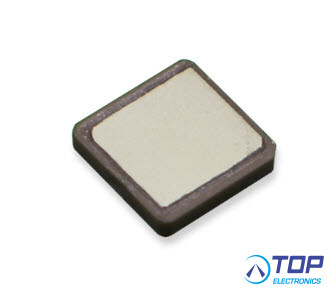

This GNSS L1 embedded SMD ceramic antenna has a footprint of 12mm
square and low profile at just 2mm. By using the main device PCB as its ground plane, this antenna is suitable for many tracking applications like telematics devices, vehicle tracking, navigation devices and wearables. We provide comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs.
Key Features:
- Ceramic SMD IoT antenna
- Optimized for GNSS
Frequency range: 1575.42 ±1.5MHz
Dimensions: 12mm x 12mm x 2mm
Peak efficiency: 32%
RHCP
- Quectel Wireless Solutions product -
