Product specifications
YG0030AA

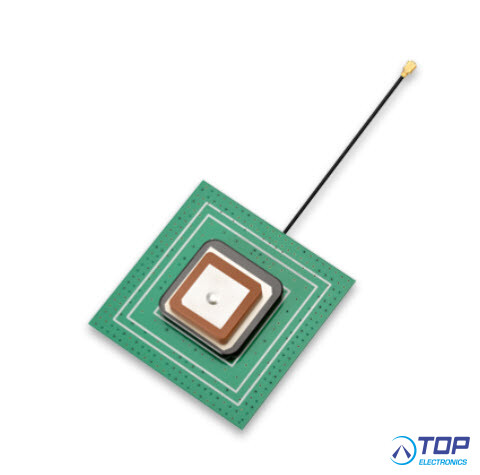

GNSS L1/L5 (Passive) Cable Mount Antenna
This is a passive GNSS L1/L5 embedded stack patch ceramic antenna which is connected to the host device via a cable and IPEX connector. By using the main device PCB as its ground plane, this antenna is suitable for tracking, fleet management, navigation, RTK and many other tracking applications. We provide comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs.
Key Features:
- Optimized for GNSS L1/L5
- Pin mounted ceramic
- IPEX MHF 1 connector
Frequency band: 1176MHz (L5), 1575MHz (L1)
Dimensions: 50mm × 50mm × 9.3mm
Cable length: 60mm
RHCP
RoHS and REACH compliant
