Product specifications
YBS00A1AA

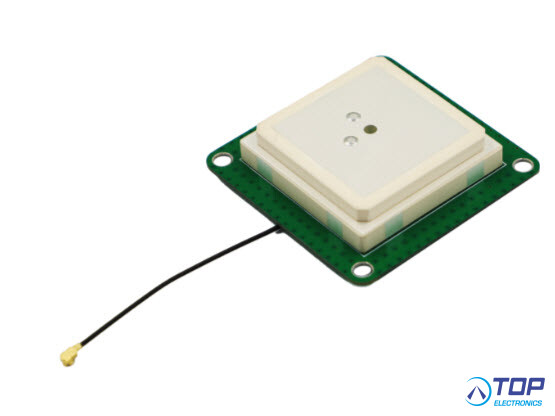

L1 & L5 Active GNSS Ceramic Cable Mount Antenna
This is an active GNSS L1/L5 embedded stack patch ceramic antenna which is connected to the host device via a cable and IPEX connector. By using the main device PCB as its ground plane, this antenna is suitable for tracking, fleet management, navigation, RTK and many other tracking applications. Optional cable lengths and connector types available upon request. We provide comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs.
Key Features:
- Ceramic cable mount GNSS IoT antenna
- Optimized for GNSS L1 & L5
- IPEX I connector
- Compact dual feed patch element
Frequency band L5: 1166-1186MHz
Frequency band L1: 1559-1606MHz
Dimensions: 45mm x 45mm x 6mm + 40mm x 40mm x 2mm (ground plane 58.7mm x 58.7mm)
Peak efficiency: 70%
Operational voltage: 2.7-3.3v
RoHS and REACH compliant
- Quectel Wireless Solutions product -
