Product specifications
YC0008AA

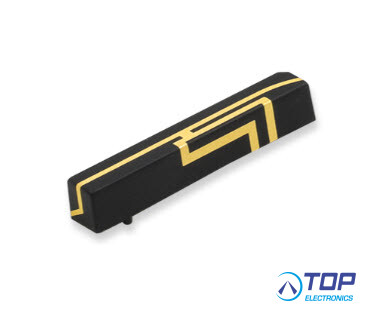

L1 & L5 LDS GNSS SMD Antenna
This is a passive GNSS L1/L5 embedded SMD antenna made from the latest LDS (Lazer Direct Structuring) technology. By using the main device PCB as its ground plane, this antenna is suitable for tracking, fleet management, navigation, RTK and many other tracking applications. We provide comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs.
Key Features:
- LDS SMD antenna
- Optimized for GNSS L1 and L5 (passive)
Frequency band: 1173MHz, 1575MHz
Dimensions: 30mm × 5mm × 5mm
Peak efficiency: 56%
SMD – supplied tape and reel
- Quectel Wireless Solutions product -
