Product specifications

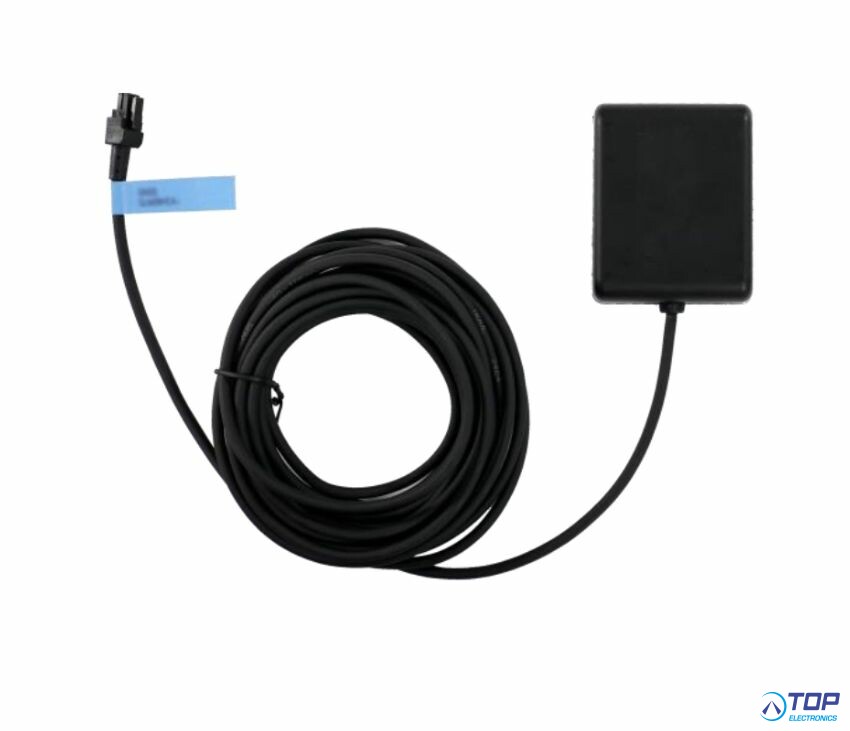

QLM29HxAA-GM
Dual-Band Multi-Constellation G-Mouse with RTK & DR Functions
The QLM29HBAA-GM and QLM29HCAA-GM, collectively referred to as QLM29HxAA-GM are dual-band, multiconstellation G-Mouse receivers that support the concurrent reception of global and regional GNSS constellations such as GPS, GLONASS, Galileo, BDS, and NavIC as well as QZSS and SBAS. Unlike GNSS receivers that track only L1 signals, QLM29HxAA-GM can receive and track a higher number of visible satellites across multiple bands, thereby significantly mitigating the multipath effect in deep urban canyons and improving positioning accuracy.
The internal LNA, diplexer and SAW filters enhance the receivers’ sensitivity and anti-interference capability. Featuring dual frequency support, the receivers deliver enhanced accuracy of 1 m in autonomous mode and centimeter level in the RTK-capable variant. The DR function ensures the module’s superior positioning performance even in weak signal areas or when GNSS signals are not available.
The high-precision positioning capability of QLM29HxAA-GM makes them perfectly suited for applications such as micromobility, tractor steering systems, precision agriculture and enables easy upgrading of existing legacy L1 only systems that have a spare RS232 port
without complete product re-design.
KEY FEATURES:
- Multi-GNSS engine supporting GPS, GLONASS, Galileo, BDS, NavIC, and QZSS
- Concurrent reception of L1 and L5 GNSS band signals
- Integrated DR function or DR + RTK function
- Integrated LNA for high sensitivity
- Integrated diplexer/SAWfilters for noise cancellation
- RS-232 interface
QUECTEL QLM29HxAA-GM SERIES:
- Dimensions: 72.0mm × 57.6mm × 22.3mm
- Weight: ~220g
- Tracking sensitivity: -165dBm
- Default Constellations: GPS + GLONASS + Galileo + BDS + QZSS
- Supported Bands: GPS/QZSS: L1 C/A, L5, GLONASS: L1, Galileo: E1, E5a, BDS: B1I, B2a, NavIC: L5
- Supply Voltage Range: 3.3–5.5 V, typ. 5.0 V
- Operating temperature: -40°C to +85°C
QLM29HxAA-GM VARIANTS:
QLM29HBAA-GM - Function(s): RTK + DR (integrated IMU)
QLM29HCAA-GM - Function(s): DR (integrated IMU)
- Quectel Wireless Solutions product -
