Product specifications

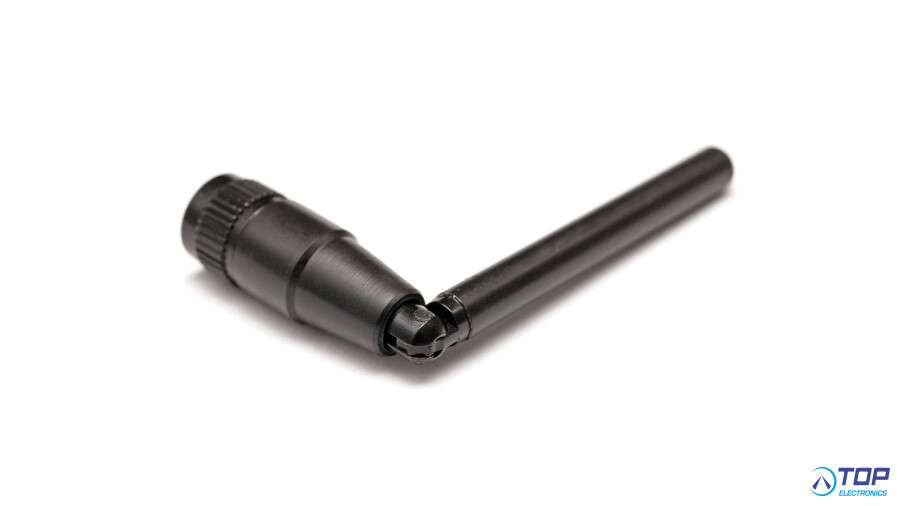

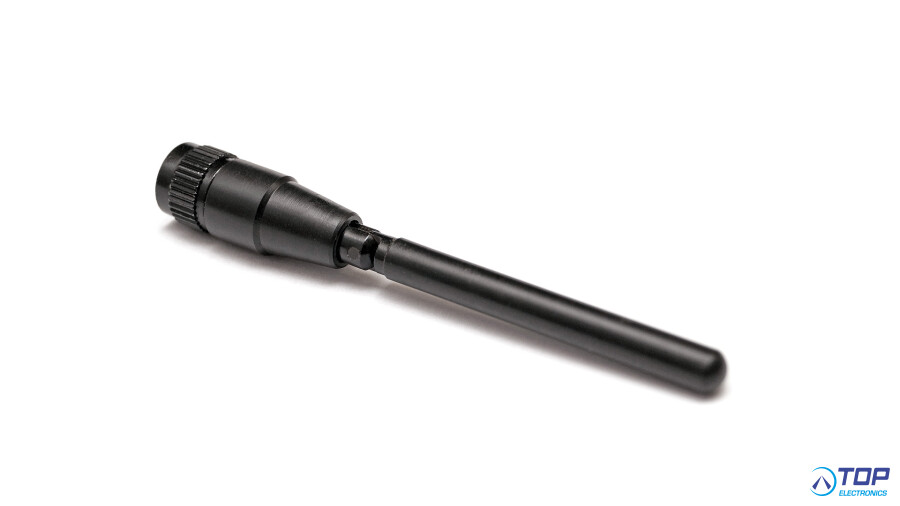

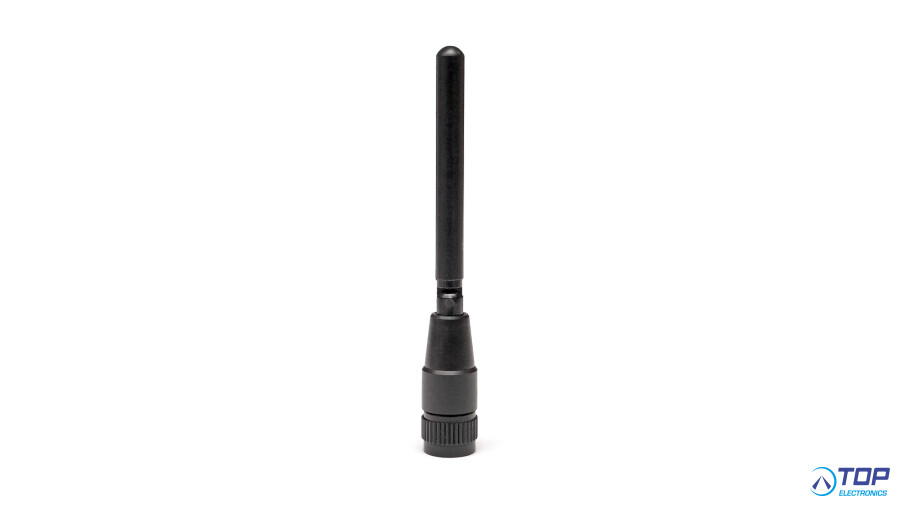

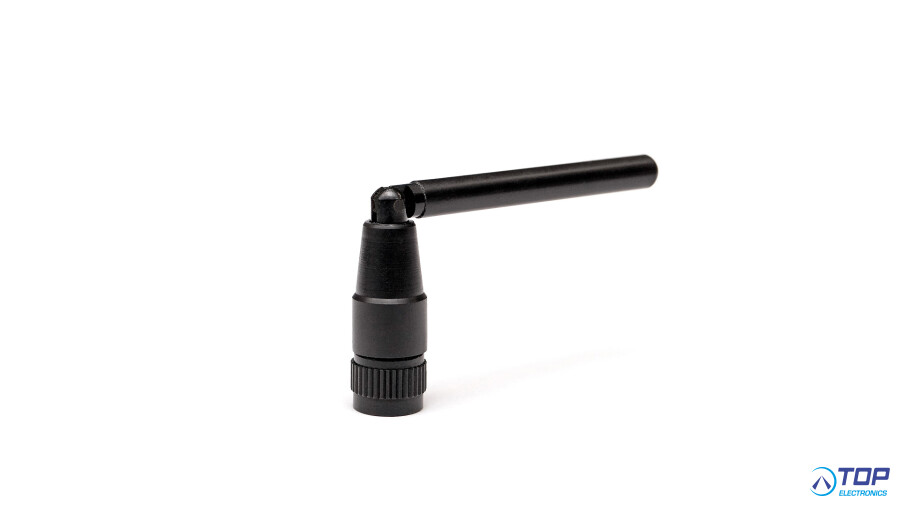

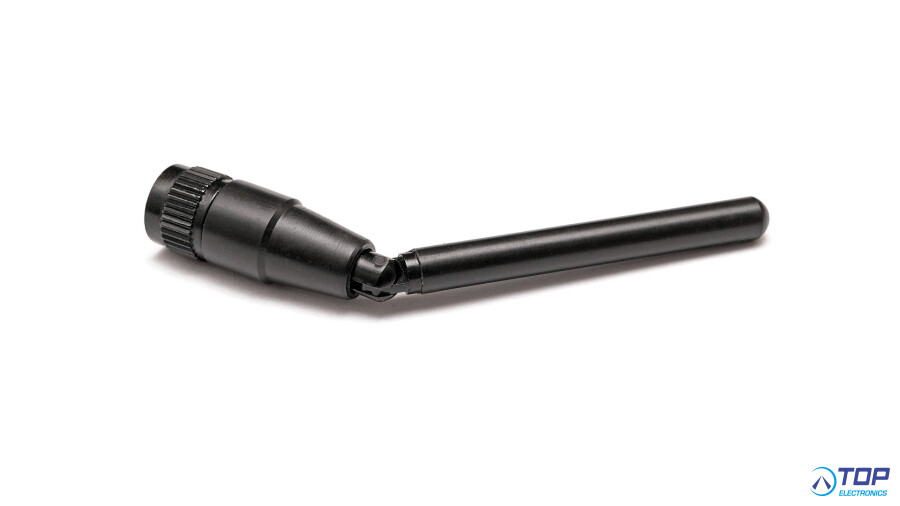

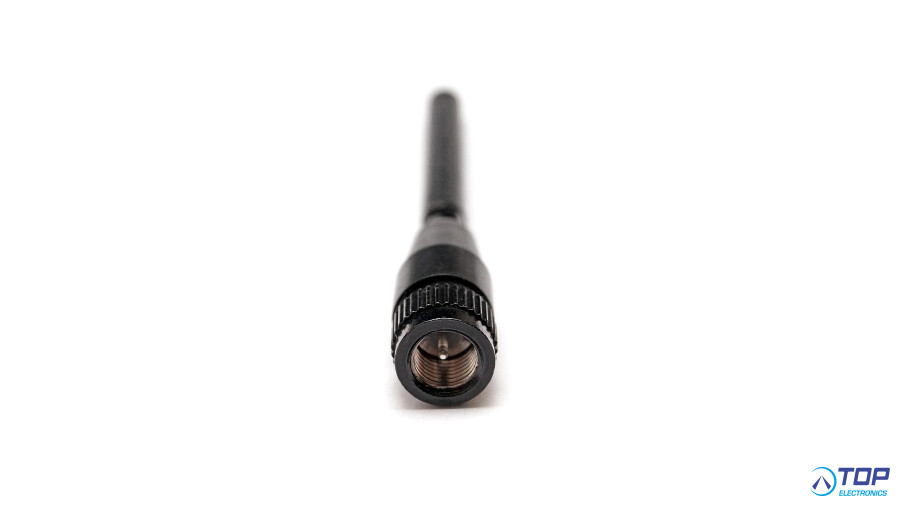

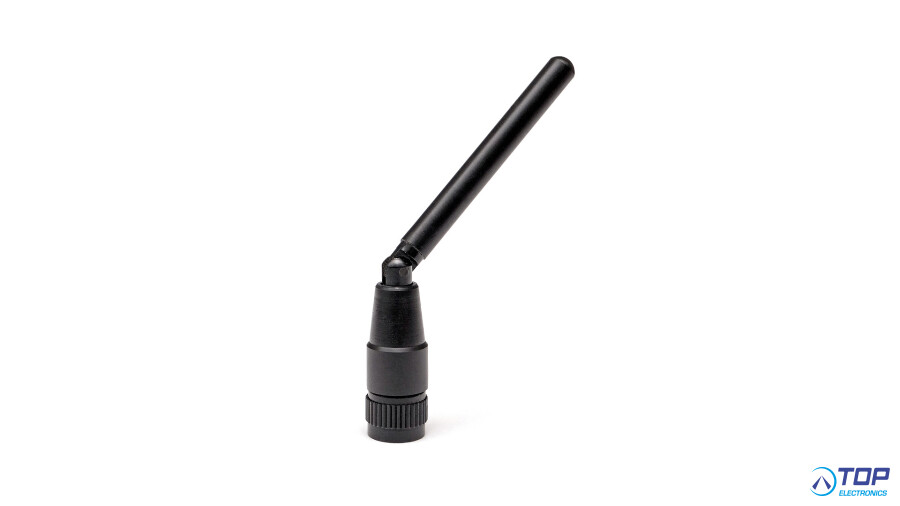

2JW1001
GPS/GLONASS/BeiDou/Galileo 1561-1606 MHz High Efficiency Antenna
General Specification
Frequency: GPS/GLO/BEI/QZSS/Galileo/L1
Mounting: Connector Mount
Dimensions (mm): Ø 10 × 71
Operating temperature: -20 °C to +65 °C
Standard colors: Black / White
Antenna and electrical specifications
GPS/GLONASS/BeiDou
Standards: GPS/GLONASS/BeiDou/QZSS/Galileo
Frequency: 1561.098, 1575.42, 1598-1606
VSWR: ~1.3:1, ~1.3:1, ~1.3:1
Efficiency (%): ~70, ~70, ~69
Peak Gain (dBi): ~2.9, ~2.8, ~2.9
Impedance (Ohm): 50
Radiation Pattern: Omni-Directional
Polarisation: Linear
Max. Input Power (W): 25
