Product specifications
ERF4041

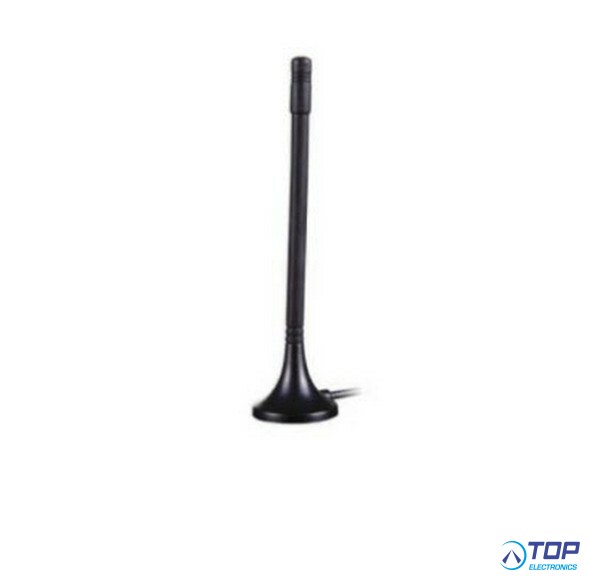

The ERF4041 antenna is a GSM antenna a SMA Male connector. The antenna can be used in these frequency
bands: 800~840 / 1640 / 2200~2230 / 3410 MHz.
The antenna can be used for applications , GSM , M2M, LoRa and more.
Electrical Properties
Frequency Band: 800 ~ 840 / 1640 / 2200 ~ 2230 / 3410 MHz
Nominal Impedance: 50 ohm
Polarization: Linear
V.S.W.R: < 2.5
Mechanical Properties
Antenna Type: External Antenna
Connector Type: SMA Male
Antenna Dimensions: 49,9 mm ± 0.3
Antenna Color: Black
Operating Temperature Range: -40°C~+85°C
Storage Temperature Range: -40°C~+85°C
