Product specifications
ERF4113

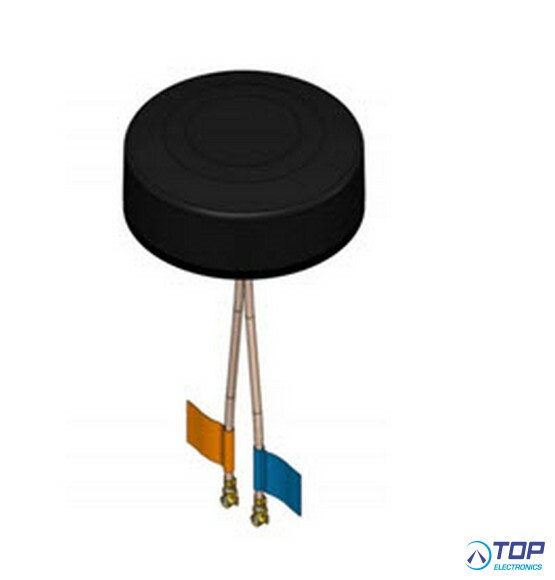

The ERF4113 antenna is an external GSM/UMTS and GPS antenna with a 2 SMA connectors.
The antenna can be used for applications such as, GSM, M2M, 2G/3G/4G and more.
Electrical Properties
Frequency Band: GSM / UMTS & GPS
Nominal Impedance: 50 ohm
Polarization: Linear
V.S.W.R: < 2.0
Gain: 2 dBi
Mechanical Properties
Antenna Type: External Antenna
Connector Type: SMA (2x)
Antenna Dimensions: 46,6 mm
Antenna Color: Black
Cable Length: 100 cm
Operating Temperature Range: -40°C~+85°C
Storage Temperature Range: -40°C~+85°C
