Product specifications
ERF4114

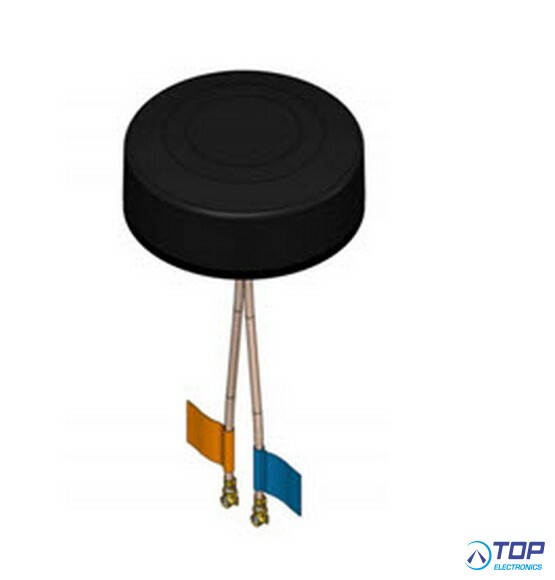

The ERF4114 antenna is an external GSM/UMTS and GPS antenna with a 2 U.FL connectors.
1 connector for the GSM and UMTS frequencies , and 1 for GPS.
The antenna can be used for applications such as, GSM, M2M, 2G/3G/4G and GPS/GLONASS.
Electrical Properties
Frequency Band: GSM / UMTS & GPS
Nominal Impedance: 50 ohm
Polarization: Linear
V.S.W.R: < 2.0
Gain: 2dBi
Mechanical Properties
Antenna Type: External Antenna
Connector Type: SMA (2x)
Antenna Dimensions: 46,6 mm
Antenna Color: Black
Cable Length: 150 cm
Operating Temperature Range: -40°C~+85°C
Storage Temperature Range: -40°C~+85°C
