Product specifications
Attend 206A-SEAN-R03

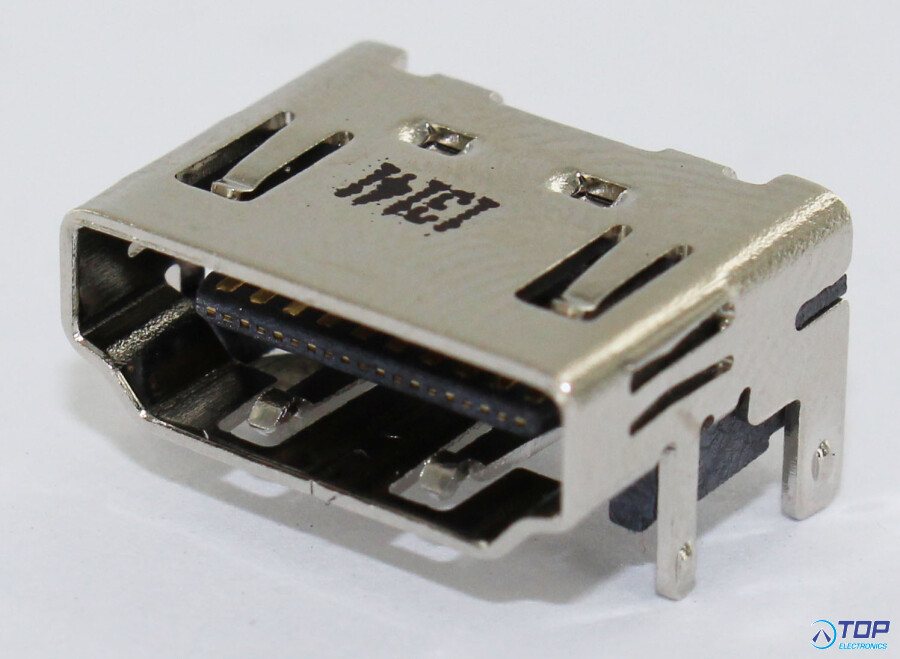

HDMI A Type Receptacle w/o Flange, R/A, SMT Type
ELECTRICAL
Current Rating: 0.5A per pin
Voltage Rating: 40V AC/DC
Contact Resistance: 60mΩ
Insulation Resistance: 100MΩ
Dielectric Withstanding Voltage: 500V AC
MECHANICAL
Durability: 10000 Cycle
Insertion Force: 44.1N Max
Extraction Force: 9.8~39.2N
ENVIRONMENTAL
Operating temperature range: -40°C~+85°C
Storage temperature range: -40°C~+85°C
SOLDER ABILITY
Recommended IR Reflow Temperature: 260°C
Recommended PCB Thickness: 1.0mm
