Product specifications
Attend 206A-SABN

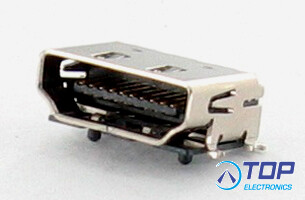

HDMI Connector A Type, Receptacle, R/A, SMT Type, w/o Flange
Material and Finish
Insulation Material: L.C.P.+30% Glass Filled, UL94V-0, Black
Contact Material: Brass (C2680-EH), t=0.2mm
Shell Material: SPCC
Contact Area Plated: 15u" Gold for One Side
Plated Over 50u" Nickel
Solder Plated: 100u" Tin Plated
Shell Plated: 50u" Nicket Plated
Current Rating: 0.5 Apm Min.
Insulation Resistance: Unmated: 100 MΩ Min.
Mated: 10 MΩ Min.
Contact Resistance: 10mΩ max.
Dielectric Withstanding Voltage: 300V AC
Operation Temperature: -20°C TO +85°C
