Product specifications

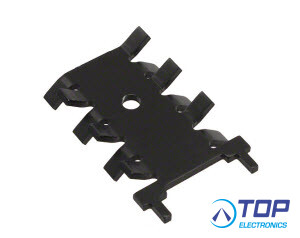

HS22 - TO-220 Heatsink
Type ............................................ Board Level, Vertical
Package Cooled ............................... TO-220
Attachment Method .......................... Bolt On and PC Pin
Shape .......................................... Rectangular
Length ......................................... 1.250" (31.75mm)
Width .......................................... 0.875" (22.2mm)
Diameter ....................................... -
Height Off Base (Height of Fin) ............ 0.250" (6.35mm)
Power Dissipation @ Temperature Rise ... -
Thermal Resistance @ Forced Air Flow .... -
Thermal Resistance @ Natural .............. 20°C/W
Material ........................................ Aluminum
Material Finish .................................. Black Anodized
- APEX Microtechnology product -
