Product specifications

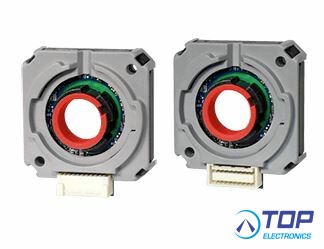

Same Sky - AMT132S-V (CMOS, Radial Orientation)

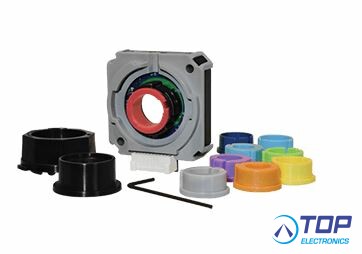

The AMT13-V all-in-one incremental encoder kit offers up to 176 configurations in one package. The kit supports 9 shaft sizes ranging from 9 mm to 15.87 mm (5/8 in) and includes three simple mounting tools.
Coupled with selectable resolution range of 48 to 4096 PPR via Same Sky's AMT Viewpoint GUI, the AMT13-V kit provides engineers with a flexible platform in the development process and purchasing managers the ability to greatly reduce SKU count in production.
FEATURES
- patented capacitive ASIC technology
- low power consumption
- incremental resolutions up to 4096 PPR
- resolutions programmable with AMT Viewpoint™ PC software
- differential line driver versions
- digitally set zero position
- compact modular package with locking hub for ease of installation
- radial and axial cable connections
- -40~125°C operating temperature
Specifications
- Input Voltage 4.5 ~ 5.5 Vdc
- Operating Temp. -40 ~ 125°C
- Max. speed 2500/4000/ 8000 RPM
- Same Sky product -
