Product specifications
ProAnt 279

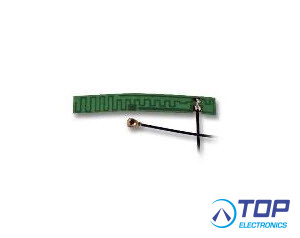

Inside™ GSM/868 Flex MHz Internally-Mounted Antenna
Flexible antenna covering 868 MHz, GSM 900 (880-960 MHz) and GSM 1800, 1900 (1710-1990 MHz) for internal mounting on non-conductive surfaces such as plastic. The antenna includes adhesives for attachment. Inside Flex antenna gives the ability to mount the antenna on non-flat, curved surfaces or around corners.
The antenna might need to be retuned to give optimum performance.
Applications
- M2M-communications
- Telemetric
- Automated Meter Reading
- Alarms
Technical data
- Frequency: 868-960 and 1710-1990 MHz
- VSWR: < 4:1 (on ProAnt demo box)
- Gain: Max 3 dBi
- Dimension: 8 x 56 mm thickness 0.2 mm
- Mounting: Adhesive tape
- Interface: MHF (U.FL) on 100 mm cable (other options upon request)
- Temperature: -30 to +85 °C
- ProAnt AB product -
