Product specifications
WuT 38011

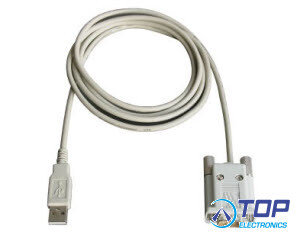

Interface USB <> RS232 Interface Cable 2
The interface cable allows connecting of RS232 devices to your system by converting an existing USB port into a serial port. The complete interface with its electronics disappears into the DB9 plug on the cable.
Product properties:
Successor model to W&T USB <> RS232 Interface Cable 38001
Handy cable solution: Interface integrated into 9-pin SUB-D housing
No additional power supply necessary: Voltage supply via the USB
Common solution for the Windows, Linux and Mac world:
Addressable as virtual COM interface under
Windows 98 / Me / 2000
Windows XP / Server 2003 / Vista / Server 2008 / 7 / Server 2008R2 / 8 / Server 2012 (x86 and x64)
Supports Mac OS 8, OS 9 and OS X
Direct Linux support without additional driver from kernel version 2.4.0
Software-compatible with W&T USB Industry Interface 38211
Maximum speed of the serial interface: 1 Mbaud
USB 2.0 Full Speed Device (12 Mbit/s)
Support of all RS232 data and handshake lines
RxD, TxD, RTS, CTS, DSR, DTR, DCD, RI
Conforms to standards both in office and industrial environments:
Increased noise immunity for industrial areas
Stricter noise emission for residential and commercial areas

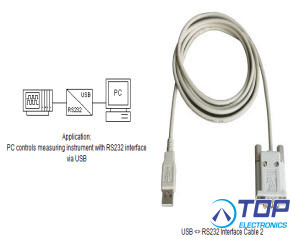

Application:
For years the RS232 interface has been established as a proven interface for connecting serial terminal devices over short and medium distances. In order to be able to use this reliable standard into the future, Wiesemann & Theis offers the USB<>RS232 Interface Cable 2 as a converter in the form of two meters of connection cable which enables connecting your RS232 devices even to computers which do not provide a serial interface.
The converter fulfils the industrial noise immunity standard specification EN61000-6-2 and the emission standard specification EN55022B. For that reason, despite its miniature design and its attractive price, the interface cable can be deployed without restriction not only in the industrial environment but also in the office domain.
Connections and displays:
- USB port: Type A plug
- Serial port: RS232 Interface, 9-pin SUB-D plug with DTE pin functions
- Baud rate: 300baud .. 1Mbaud
- Data format: Data bit: 7,8, Stop bit: 1,2, Parity: odd, even, no, mark, space
- Supported signals: RxD, TxD, RTS, CTS, DSR, DTR, DCD, RI
- USB-UART: FTDI FT232R
- Power supply: 5V DC over USB, no additional power supply required
- Current consumption: approx. 20mA
Housing and other data:
- Housing: 9-pole SUB-D connector housing, 50 x 33 x 15mm (L x W x H)
- Enclosure rating: IP40
- Weight: approx. 150g
- Ambient temperature: Storage: -40..+70°C, Operation: 0..+60°C
- Scope of delivery: USB <> RS232 Interface Cable 2, Product CD with driver and manual in German and English
- Wiesemann & Theis product -
