Product specifications
Silex - SX-550-0700
Wireless/Wired Internal OEM Serial Server

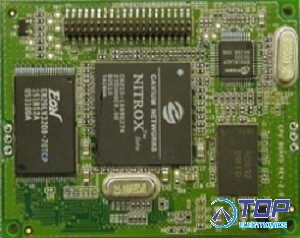

The SX-550 is a multi-purpose installable module that supports all commercially available standards for radio networks (IEEE 802.11a/b/g) and 100Base-TX and 10Base-T cable connected Ethernet.
Device interface: · 1 x serial port (RS-232 or UART)
· Second serial port for use as a dedicated console
Network interface: · 10BASE-T/100BASE-TX (Auto-detection)
· IEEE 802.11a/b/g (SX-550-1701 only)
Wireless Security: WPA and WPA2 (personal and enterprise modes), WEP; 802.1x EAP with TLS/TTLS/LEAP/PEAP/FAST
Configuration: · Web browser, ExdendView
· Console accessible via serial port or Telnet
Features:
-40-pin 1.27 mm pitch surface-mount header
-8 general purpose input/output (GPIO) signals
-Serial Port Emulator software
-Ethernet bridge mode (SX-550-1701 only)
-2 x U.FL antenna connectors (antenna diversity)
-Simple Network Management Protocol (SNMP) MIB I + II
Range of Models:
SX-550-0700 Internal OEM Serial Server Module, wired
SX-550-1701 Internal OEM Serial Server Module,
wireless/wired
SX-550-6900 Developer’s Kit
- Silex Technology product -
