Product specifications
Long Range BLE® v4.0 Dual Mode Adapter
Available versions:
LM1010-0970 - Adapter only
LM1010-0971 - Adapter + antenna (LM251)
LM1010-0972 - (Retail package) Adapter + antenna (LM251)
LM1010-0973 - (Retail package) Adapter + antenna (LM255)

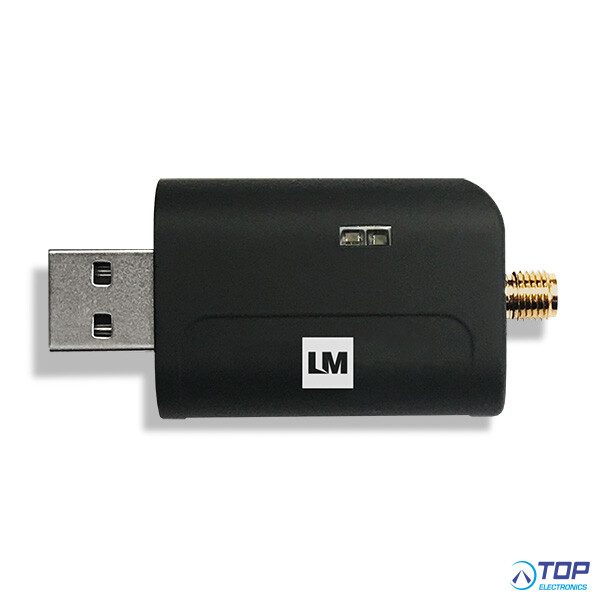

The LM1010 adapter is a small, versatile and powerful solution designed for long range communication over Bluetooth v4.0 (dual mode).
It operates in HCI mode with excellent compatibility with Linux, Windows and macOS X.
The SMA connector provides the developer with the flexibility to add an antenna that suits the products unique requirements, such as
dipole, IC or PCB antenna types. The characteristics of the selected antenna can produce a longer range, omnidirectional or unidirectional
RF signal, typically used in industries such as EPOS, M2M, health care and is ideal for developing voice and data applications.
Features:
- Bluetooth® v4.0 (Backwards compatible with Bluetooth® v2.0, v2.1 and v3.0)
- USB 2.0 (Full Speed) for data and power source
- Host Controller Interface (HCI)
- Plug and Play (OS X, Linux and Windows XP – 10 compatible)
- iBeacon compatible
- Voice and Data Application support (including VoIP over Bluetooth®)
- Stereo Audio supported

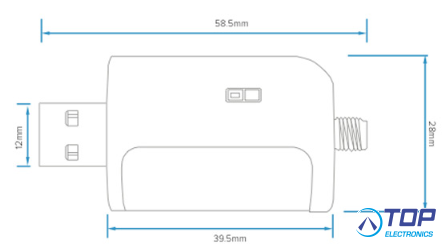

- 53mm x 28mm x 14mm (Without SMA Connector)
- RoHS, REACH and WEEE
- LM Technologies product -
