Product specifications
TSCS42A2X1NLGXZAX
Ultra-Low-Power Audio Codec + Headphone Amp + Stereo Speaker Amp + Analog / Digital Mic Input
Version:
Digital Microphone
Commercial temperature
The TSCS42xx are low-power, high-fidelity integrated CODECs targeted at portable applications such as Bluetooth® applications, tablet computers, personal navigation devices, portable projectors, speaker docks, etc. The devices have been designed with rapid customization in mind. TSI is able to rapidly provide varying levels of integration, additional audio processing, etc., according to the needs of large markets or customers. Contact TSI with your clock programming requirements.
Features
Incredible 124dB SNR
High-fidelity 32-bit stereo CODEC
24-bands of fully configurable Parametric EQ (Peaking Filters)
Implemented as configurable BiQuads
Alternative filter types available: HPF, LPF, BPF, APF
Multiband Compressor / Limiter / Expander
Wideband DRC
3D Stereo Enhancement
Psychoacoustic Bass Enhancement
High-frequency restoration for compressed audio content
Headphone Jack detection
Integrated, ground-referenced, capless headphone driver
Up to 35mW into 16 Ohms, < 1% THD+N
Two flexible I2S / LJ / RJ digital audio interfaces
Bluetooth™ PCM input compatibility
Three single-ended analog microphone / line-in interfaces with supplied mic bias
Differential analog microphone / line-in interface with supplied mic bias
Stereo digital microphone interface
Ultra-low power consumption with integrated power management
Filterless Stereo DDX™ Amplifier Technology
3W/Channel (4Ω) Stereo Class-D Digital Speaker Driver
2-wire (I2C compatible) control interface

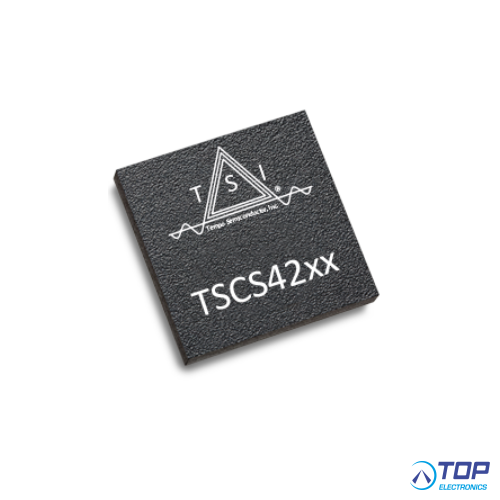

48-pin 7x7mm QFN package
Commercial Temp (0C-70C) and Industrial Temp (-40C – 85C) Offerings
