Product specifications
Same Sky

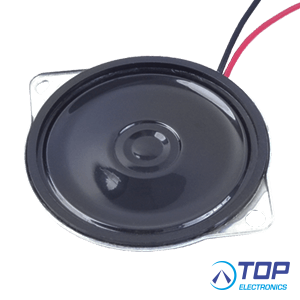

Speaker, low profile, 40mm, 1W, 5.0mm depth, 4O, with leads
-Specifications
-Nominal Size ...................40 mm
-Impedance .....................4 Ohm ± 15% at 1 KHz 1 V
-Resonant frequency ..........500 Hz ± 100 Hz at 1 V
-Sound pressure level ..........91 dB/w ± 3 dB 1 w 50 cm ave at 0.6K, 0.8K, 1K, 1.2K Hz
-Response .......................Fo Hz ~ 7 KHz max 10 dB
-Input power ....................Nominal 1 W Handling capacity 2 W
-Operation .......................must be normal at program source 1 W
-Buzz, rattle, etc. ...............must be normal at sine wave 2 V
-Magnet ..........................Size: 12.5 x 1.5 mm
-Load test ........................White noise 1 W for 24 hours
-Heat test ........................60 ± 2° C 20-50% R.H. 24 hours
-Humidity test ....................40 ± 2° C 90-95% R.H. 24 hours
-Frequency Response Curve
-Potentiometer range .....50 dB
-Rectifier ....................RMS
-Lower limit frequency ....20 Hz
-Wr. speed .................100 mm/sec
- Same Sky product -
