Product specifications

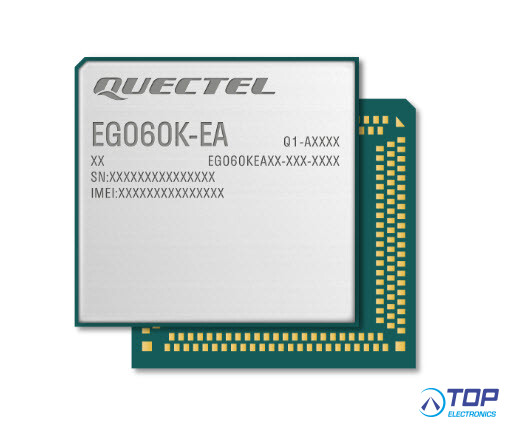

EG060K-EA
LTE-A Cat 6, LGA module
The EG060K-EA is an LTE Cat 6 module optimized specially for M2M and IoT applications. It delivers peak data rates of 300Mbps downlink and 50Mbps uplink. Designed in an LGA form factor, the EG060K-EA is compatible with Quectel's EG06/EG12/EG18 module (Cat 6/12/18), which enables customers to migrate between different categories.
The EG060K-EA supports Qualcomm® IZat™ location technology gpsOne 9HT (GPS, GLONASS, BDS and Galileo). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7/8/8.1/10/11, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial routers, home gateways, set-top boxes, industrial PDAs, rugged tablet PCs, CCTV and digital signage.
- Quectel Wireless Solutions product -
