Product specifications

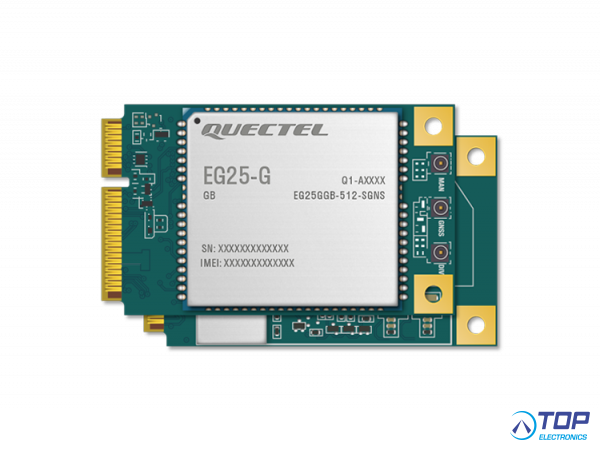

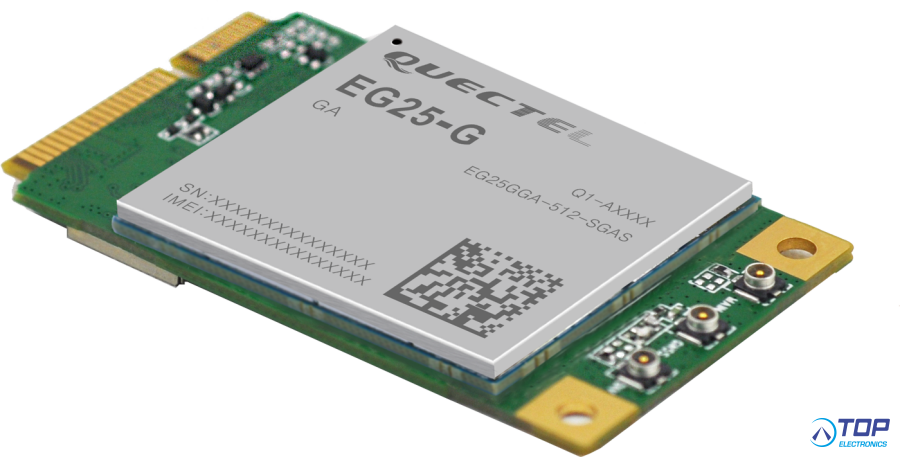

Quectel EG25-G
Multi-mode LTE Module (Global network)
The EG25-G Mini PCIe is an LTE category 4 module in a standard PCI Express® Mini Card form factor measuring 51.0mm x 30.0mm x 4.9mm, which meets the 3GPP Release 11 standard.
Delivering maximum downlink rates of 150Mbps and uplink rates of 50Mbps under LTE, the EG25-G Mini PCIe supports a range of applications that require fast and reliable transmission of large amounts of data, and backward compatibility with existing EDGE and GSM/GPRS networks ensures connection even in remote areas without 3G or 4G coverage. In addition multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability.
The EG25-G Mini PCIe supports Qualcomm IZat location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS), and the optional multi-constellation GNSS receiver greatly simplifies product design and provides quicker, more accurate and dependable positioning. A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10, Linux, Android and eCall) allow the module to serve a wide range of IoT applications such as industrial routers, industrial PDAs, rugged tablet PCs, and digital signage.
Key Benefits
- Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
- Supports MIMO
- Supports DFOTA and DTMF
- Multi-constellation GNSS receiver available
- USB 2.0 high-speed interface
- Quectel Wireless Solutions product -
# 4G # DTMF # LTE Cat 4 # MIMO
