Product specifications

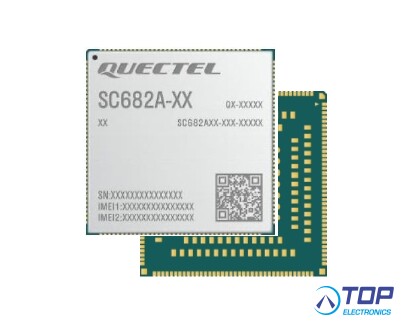

LTE SC682A Smart Module series
SC682A is a series of multi-mode LTE Cat 4 smart modules with built-in Android OS. Based on Qualcomm octa-core and 64-bit ARM v8.0 compliant application processor with built-in Adreno 610 GPU, the module is designed to support high performance, various multimedia features and Quick Charge 3.0 technology. It is ideal for both industrial and consumer applications with high data rate and multimedia functions.
SC682A series supports multiple-input multiple-output (MIMO) technology. The use of multiple antennas at the receiver end on the same frequency band greatly minimizes errors and optimizes the data speed. This module also combines high-speed wireless connectivity with embedded dual-band multi-constellation and high-sensitivity GNSS (GPS/ GLONASS/ BDS/ Galileo/ QZSS) receiver for positioning.
A rich set of interfaces (such as LCM, camera, touch panel, MIC, SPK, UART, USB, I2C, SPI) extend the applicability of the module to a wide range of M2M applications, including smart POS, smart cash registers, smart home gateways, smart robots, smart wearables, smart safety, PDA and tablets, vending machines, delivery lockers, audio and video recorders, as well as video streaming and entertainment systems.
Summary:
- LTE Cat 4 smart module with built-in Android OS
- 43.0mm × 44.0mm × 2.85mm
- LCC+LGA package
- Temperature range of -35°C to +75°C
Key Features:
- Worldwide LTE, UMTS/ HSPA+,GSM/ GPRS/ EDGE coverage
- 4-lane MIPI DSI for 2520 ×1080 @ 60fps display
- Up to 4 cameras and 3 concurrently working cameras
- Dual-band multi-constellation GNSS receiver for applications requiring fast and accurate fixes in any environment
- Recording and playback of 1080P videos @ 60fps
- Bluetooth 5.1 (BR/ EDR + BLE)
- IEEE 802.11 a/ b/ g/ n/ ac
- Quectel Wireless Solutions product -
