Product specifications

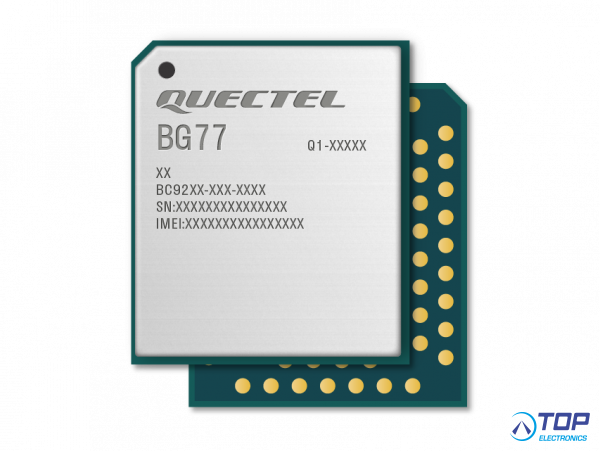

Quectel BG77 (BG77LA-64-SGNS)
LTE Cat.M & NB IoT module including GNS
Super Compact Size: 14.9mm × 12.9mm × 1.7mm
Package: LGA
Supply Voltage: 2.5V~4.8V, 3.3V Typ.
Data Rate:
▪ LTE Cat M1: Max. 589kbps (DL), Max. 1.12Mbps (UL) (Half Duplexer)
▪ LTE Cat NB2: Max. 136kbps (DL), Max. 150kbps (UL)
Protocols*: PPP/ TCP/ UDP/ SSL/ TLS/ FTP(S)/ HTTP(S)/ MQTT/ CoAP
Functions*: Data/ VoLTE/ GNSS/ DFOTA/ NITZ/ PING/ Jamming Detection/ Triangle Location
Interfaces: (U)SIM/ UART/ USB/ I2C*/ PCM*/ ADC/ GPIO/ Antenna
Power Consumption (Typical): 3μA @PSM*/ I2C/ PCM/ ADC/ GPIO/ Antenna
Power Consumption (Typical): 3μA @PSM
- Quectel Wireless Solutions product -
