Product specifications

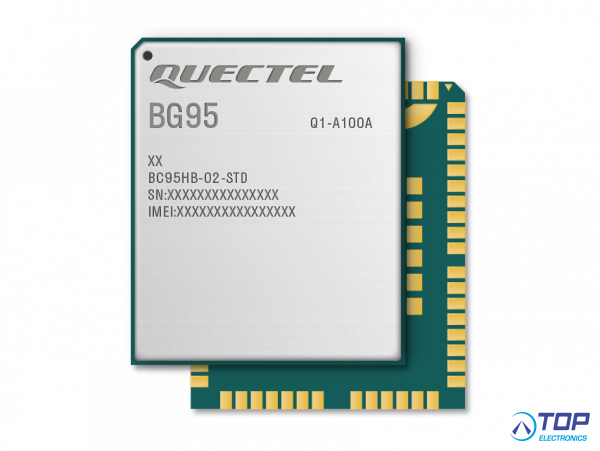

Quectel BG95-M1 (BG95M1LA-64-SGNS)
LTE Cat M1 only incl. GNSS
Package: 102-pin LGA
Supply Voltage: 2.5V~4.8V, 3.3V Typ. (BG95-M1/-M2/-N1/-M4/-M5/-MF)
3.3V~4.3V, 3.8V Typ. (BG95-M3)
Data Rate:
▪ LTE Cat M1: Max. 589kbps (DL), Max. 1.12Mbps (UL) (Half Duplexer)
▪ LTE Cat NB2: Max. 136kbps (DL), Max. 150kbps (UL)
▪ EGPRS: Max. 296kbps (DL), Max. 236.8kbps(UL)
▪ GPRS: Max. 107kbps (DL), Max. 85.6kbps (UL)
Protocols*: PPP/ TCP/ UDP/ SSL/ TLS/ FTP(S)/ HTTP(S)/ MQTT/ CoAP
Functions*: Data/ VoLTE/ GNSS/ DFOTA/ NITZ/ PING/ Jamming Detection/ Triangle Location
Interfaces: (U)SIM/ eSIM① / UART/ USB/ I2C/ PCM/ ADC/ GPIO/ Antenna
Power Consumption (Typical): 3μA @PSM
