Product specifications

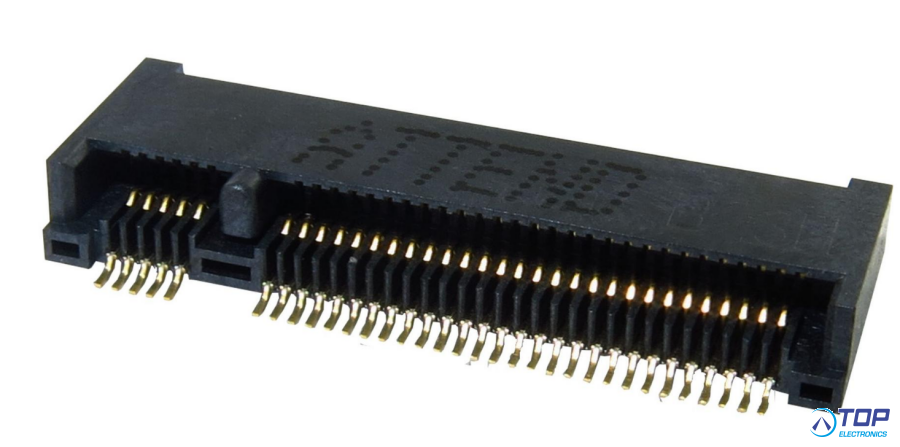

Attend 123A-32BA0-R01
M.2 Connector, B Key Type, 67Pin, 3.2H
ELECTRICAL
Current Rating: 0.5A per pin
Voltage Rating: 50V DC
Contact Resistance: 55mΩ max.
Insulation Resistance: 500MΩ min.
Dielectric Withstanding Voltage: 300VAC
MECHANICAL
Durability: 200 Cycle
Insertion Force: 20N max.
Extraction Force: 25N max.
ENVIRONMENTAL
Operating temperature range: -40°C~+85°C
Storage temperature range: -40°C~+85°C
SOLDER ABILITY
Recommended IR Reflow Temperature: 260°C 10Sec
Recommended PCB Thickness: 1.0mm
- Attend Technology product -
