Product specifications
YIC MC306

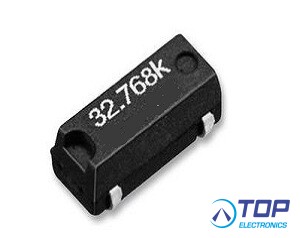

MC 306, Crystal 32,768kHz
Features:
- Frequency range : 37,768kHz
- Load Capacitance : 7pF or 12.5pF
- Drice level : 1 uW Max.
- Frequency Tolerance : ± 20ppm at 25°C
- Series Resistance : 50KΩ Max.
- Turnover Temperature : 25͎°C ±5°C
- Temperature Coefficient : -0.035±0.01ppm/C²
- Operating Temperature Range -40°C~+85°C at 25°C
- Storage Temperature Range -55°C ~+125°C
- Motional Capacitance : 0.0028pF Typical
- Shunt Capacitane : 1.45pF Typ.
- Capacitance Ratio (c0/C1) : 500 Typical
- Aging : ±5ppm MAx.
- Quality Factor : 50000 Typical
- Insulation Resistance : 500MΩ Min
