Product specifications
HP206FW

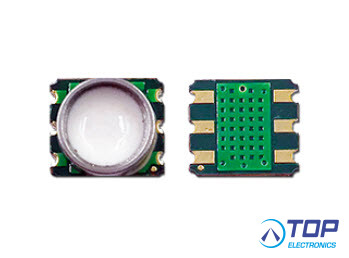

The HP206FW employs a MEMS Altimetric pressure sensor with an I²C interface to provide accurate temperature, pressure or altitude data. The sensor pressure and temperature outputs are digitized by a high resolution 24-bit ADC. The altitude value is calculated by a specific pate temperature data.
Data compensation is integrated internally to save the effort of the external host MCU system. Easy command-based data acquisition interface and programmable interrupt control is available. Typical active supply current is 5.3μA per measurement decimated by 256. Pressure output can be resolved with output in fractions of a Pascal, and altitude can be resolved in 0.1 meter. Package is surface mount with a stainless steel cap and is RoHS compliant.
Features;
- Supply voltage: 1.8V to 3.6V
- Pressure range: 300mbar~1200mbar
- Programmable events and interrupt controls
- Fully data compensated
- Direct Reading, compensated
- Pressure: 20-bit measurement (Pascals)
- Altitude: 20-bit measurement (Meters)
- Temperature: 20-bit measurement (Degrees Celsius)
- Altitude Resolution down to 0.1 meter
- Standby current<0.1μA
- Operation temperature: -40 to +85℃
- High-speed I²C digital output interface
- Size: 6.8*6.2*3.25mm
Applications;
- High Precision Mobile Altimeter / Barometer
- Industrial Pressure and Temperature Sensor System
- Automotive Systems
- Personal Electronics Altimetry
- Adventure and Sports watches
- Weather Station Equipment
- Indoor Navigation and Map Assist
- Heating, Ventilation, Air Conditioning
