Product specifications
Attend 112L-TDA0

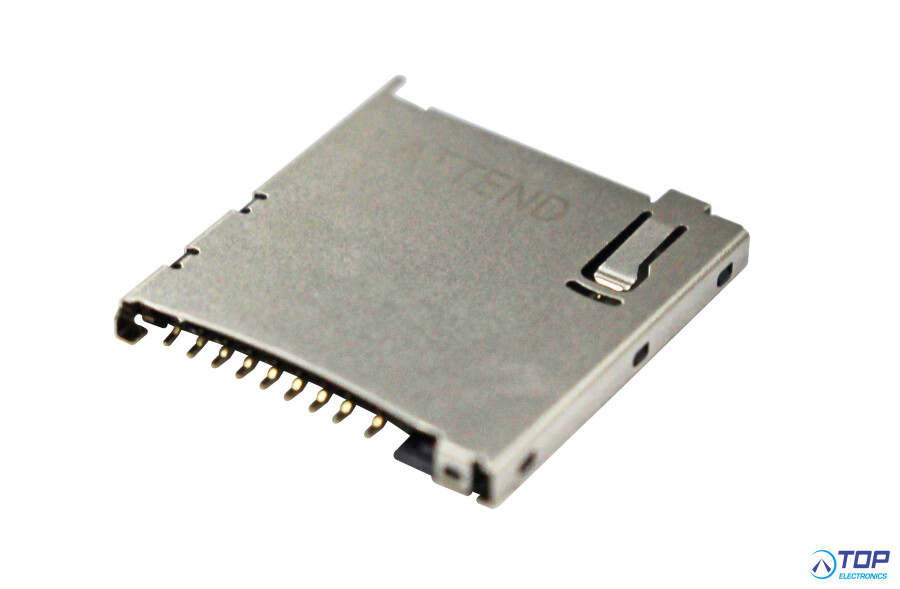

Micro SD 4.0 Socket Push-Push Type ,10u"
ELECTRICAL
Current Rating: 0.5A
Voltage Rating: 3.3VDC
Contact Resistance: 100mΩ
Insulation Resistance: 1000MΩ
Dielectric Withstanding Voltage: 500VAC
MECHANICAL
Durability: 5,000 Cycle
Insertion Force: 8N max.
Extraction Force: 8N max.
ENVIRONMENTAL
Operating temperature range: -25°C~+85°C
Storage temperature range: -40°C~+85°C
SOLDER ABILITY
Recommended IR-Reflow Temperature: 255°C max
