Product specifications
112A-TAAR-R03

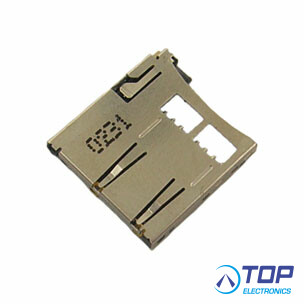

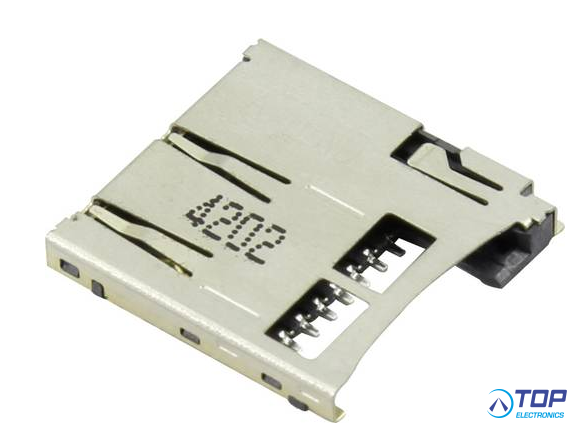

Micro SD Socket Push-Push Type, 10u",1.83mm high
SPECIFICATION
ELECTRICAL
Current Rating: 0.5A per pin
Voltage Rating: 100VAC/DC
Contact Rating:50mΩ Max.
Insulation Resistance: 1000MΩ
DielectricWithstanding Voltage: 500VAC
MECHANICAL
Durability: 10000 Cycle
Insertion Force: 9.8N Max.
Extraction Force: 9.8N Min.
ENVIRONMENTAL
Operating TemperatureRange: -40°C~+90°C
Storage Temperature Range: -40°C~+90°C
SOLDER ABILITY
Recommended IR Reflow Temperature: 260°C
Recommended PCB Thickness: 1.0mm
- Attend Technology product -
