Product specifications
Attend 112G-TA00-R

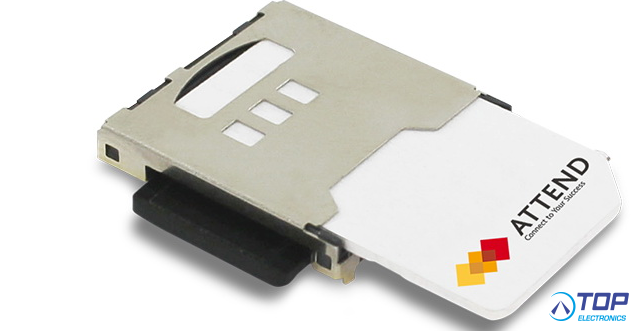

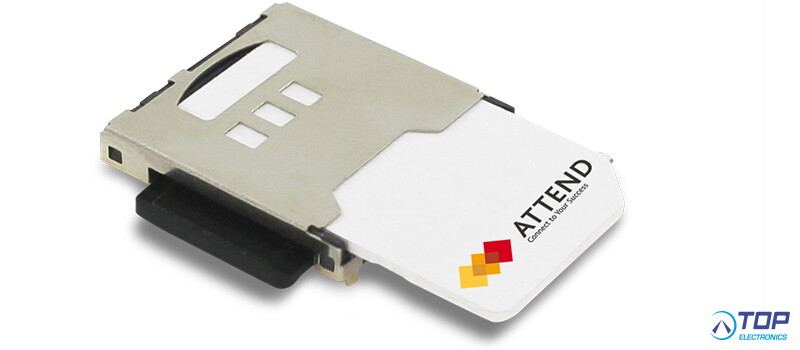

Micro SD push -push type with SIM Socket
ELECTRICAL
Voltage: 100V AC
Current: 0.5A Max
Contact Resistance: 40mΩ
Voltage Proof: 500V AC
Insulation Resistance: 1,000MΩ
MECHANICAL
Card Insertion/Withdraw Force: 13.8N Max
Push In Strength: 19.6N
Durability: 10,000 Cycles
MATERIAL
Insulator: LCP Black
Shell: SUS304
Contact: Copper Allor
Contact area: Gold Flash Plating
- Attend Technology product -
