Product specifications

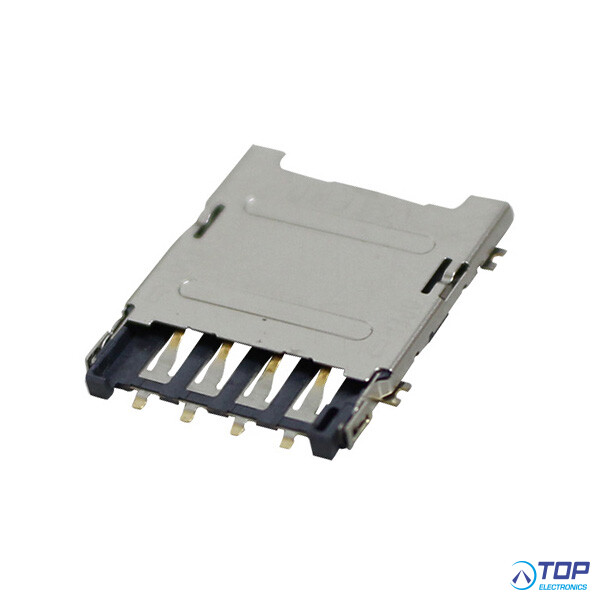

115R-BCA0
Micro SIM Card Socket,Hinge Type
SPECIFICATION:
1. ELECTRICAL
1.1 Current Rating: 0.5A Max.
1.2 Voltage Rating: 10V AC/DC
1.3 Contact Resistance:
Initially 50mΩ Max.
Finally 100mΩ Max.
1.4 Insulation Resistance: 1,000MΩ Min.
1.5 Dielectric Withstanding Voltage: 500V AC
2. MECHANICAL
2.1 Contact Normal Force: 0.3N Min./ Pin
2.2 Durability: 50 Cycles
3. ENVIRONMENTAL
3.1 Operating temperature range: -30°C~+85°C
3.2 Storage temperature range: -40°C~+85°C
3.3 Storage Humidity: +10%~+80% RH
4. SOLDER ABILITY
4.1 Recommended IR Reflow(Wave Soldering) Temperature: 260℃
- Attend Technology product -
