Product specifications
Attend 115I-AEAA

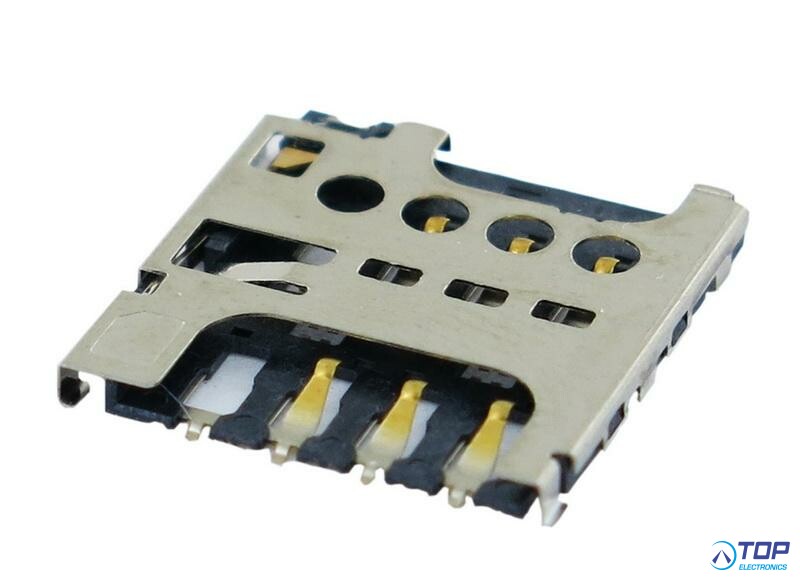

Micro SIM Card Socket, Push-Pull 6P, SMD
MECHANICAL
Durability: 500 Cycle
Contact Normal Force : 0.3N~0.35N
Insert Force: 10N
Withdrawal Force: 0.5N
ELECTRICAL
Current Rating: 0.5A
Voltage Rating: 10VDC
Contact Resistance: 100mΩ Max
Insulation Resistance: 1000MΩ
Dielectric Withstanding Voltage: 500VAC for 1 minute
ENVIRONMENTAL
Operating temperature range: -40°C to +85°C
Storage temperature range: -40°C to +85°C
- Attend Technology product -
