Product specifications
Attend 207A-BAB0-01

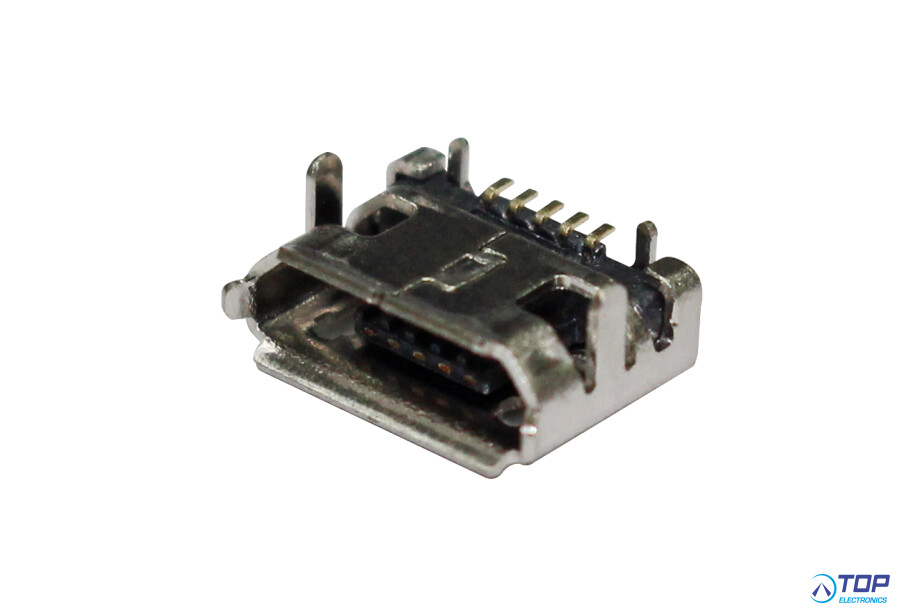

Micro USB 2.0 B Type Receptacle R/A SMT Type, Shell DIP, GF
ELECTRICAL
Current Rating: 1A Max, 10u A Min.
Voltage Rating: 50V Max
Contact Resistance: 50mΩ
Insulation Resistance: 1,000MΩ / 500V DC
Dielectric Withstanding Voltage: 500V AC at 1 minute
MECHANICAL
Durability: 5,000 Cycle Min.
Press Force: 0.5N
ENVIRONMENTAL
Operating temperature range: -40℃~+85℃
Storage temperature range: -40℃~+85℃
SOLDER ABILITY
Recommended IR-Reflow Temperature: 260℃ 10Sec
- Attend Technology product -
