Product specifications
119A-56A00-R04

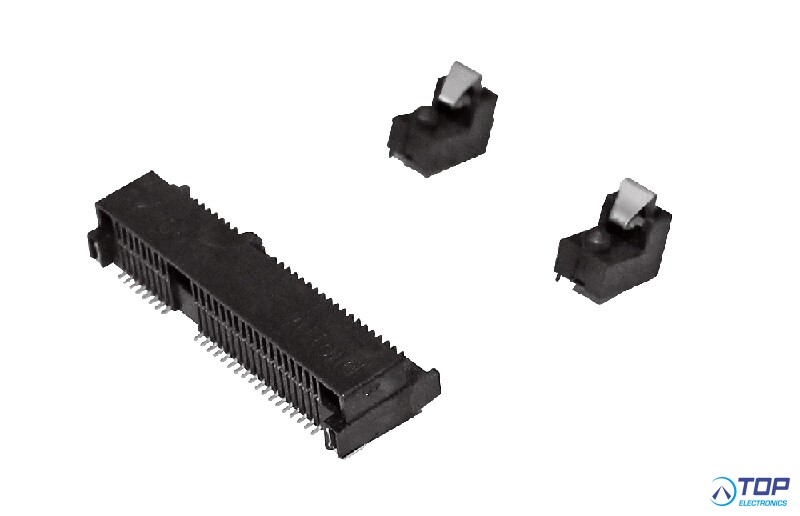

Mini PCI Express Socket Stand off 5.6mm
ELECTRICAL
Current Rating: 0.5A per pin
Voltage Rating: 50V DC
Contact Resistance: 55mΩ max.
Insulation Resistance: 500MΩ min.
Dielectric Withstanding Voltage: 300VAC
MECHANICAL
Durability: 100 Cycle
Insertion Force: 2.3Kgf max.
Extraction Force: 2.3Kgf max.
ENVIRONMENTAL
Operating temperature range: -40°C~+85°C
Storage temperature range: -40°C~+85°C
SOLDER ABILITY
Recommended IR Reflow Temperature: 260°C 10Sec
- Attend Technology product -
