Product specifications
MP113

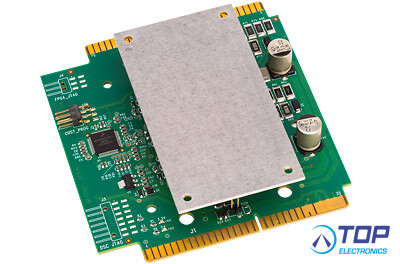

MP113 is an inkjet printhead driver intended for use with Fujifilm Dimatix SG-class printheads. It can also be used with Q-class print heads and compatible printheads of other brands.
MP113 contains an analog and a digital section.
The analog section consists of two independent power amplifiers, each of which capable of producing the fire pulses needed to drive up to 512 inkjet nozzles.
The digital section converts 1- or 2-bit, digital printing data into bit streams for the printhead’s output latches, and exactly timed analog input signals for the power op amps.
The analog section plugs into the digital section and is built on a thermally conductive but electrically insulating substrate that can be mounted to a heat sink. The digital section has card edge connectors for connection to the printhead(s) and to digital printing control.
Features:
2 Power, Analog Output Channels
- High Output Voltage: Up To 135Vpp
- High Output Current: 3A Continuous, 7A Peak (Per Channel)
- High Output Slew Rate: Up To 45V/μs
- 100W Dissipation Capability (Per Channel)
- Over-temperature Protection
- Temperature Sense
Integrated Digital Printing Data Converter
- LVDS Serial Data Input, 1- Or 2-bits Per Nozzle
- Up To 1024 Nozzles
- Output Waveform Frequency: Up To 50kHz
- APEX Microtechnology product -
