Product specifications
Attend 125A-78C00

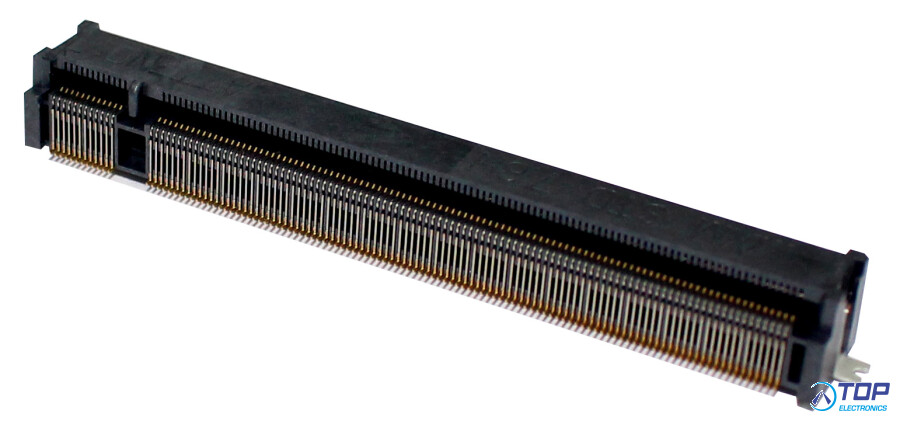

MXM 230 pin for QSeven, 0.5 Pitch, 7.8H, Standard Type, Reel, 5u"
ELECTRICAL
Current Rating: 0.5A per pin
Voltage Rating: 50V AC/DC
Contact Resistance: 40mΩ
Insulation Resistance: 250MΩ
Dielectric Withstanding Voltage: 250VAC
MECHANICAL
Durability: 30 Cycle
Insertion Force: 13N max.
Extraction Force: 16N max.
ENVIRONMENTAL
Operating temperature range: -40°C~+85°C
Storage temperature range: -40°C~+85°C
SOLDER ABILITY
Recommended IR Reflow(Wave Soldering) Temperature: 260°C
