Product specifications
Attend 115S-BS00

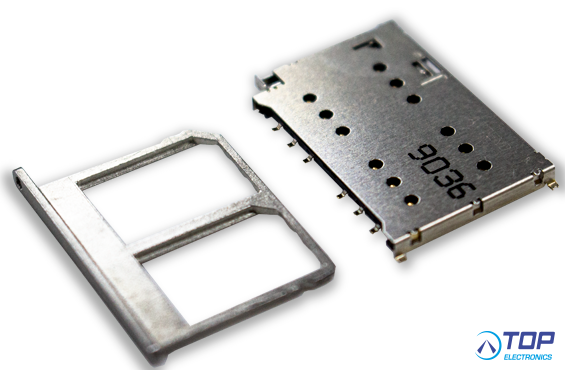

Nano SIM Socket, Dual Card Tray, Eject Type, 30u
Also available on cut tape, see part 115S-BC00.
ELECTRICAL
Current Rating: 0.5A max.
Voltage Rating: 10VAC/DC
Contact Resistance: 50mΩ
Insulation Resistance: 1000MΩ
Dielectric Withstanding Voltage: 500VAC
MECHANICAL
Durability: 2,000 Cycle
Tray Insertion Force: 10N max.
Tray Extraction Force: 3N min.
Contact Normal Force: 0.2N min. per pin
ENVIRONMENTAL
Operating temperature range: -40°C~+105°C
Storage temperature range: -40°C~+105°C
SOLDER ABILITY
Recommended IR Reflow Temperature: 260°C
RoHS compliant products
- Attend Technology product -
