Product specifications
Attend 115V-AD00-T

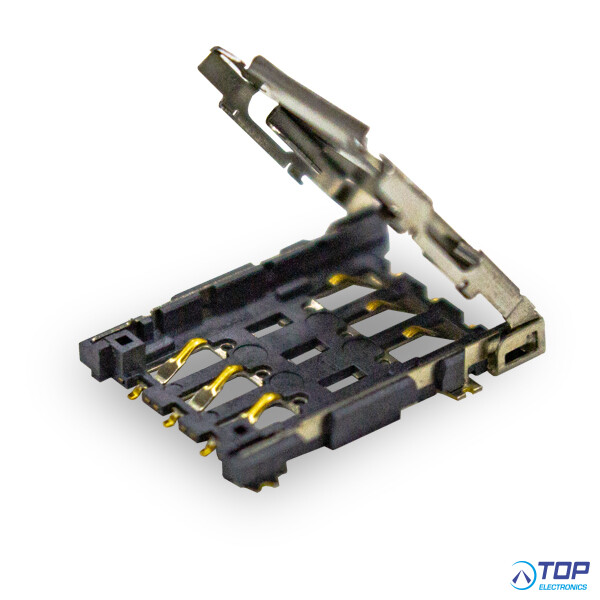

Nano SIM socket, Hinge Type, 6 Pin, 10u
Complete reel with 1Kpcs.
Also available on cut tape, see part 115V-AD00.
ELECTRICAL
Current Rating: 0.5A max.
Voltage Rating: 10VAC/DC
Contact Resistance: 50mΩ, after 100mΩ Max.
Insulation Resistance: 1000MΩ
Dielectric Withstanding Voltage: 500VAC
MECHANICAL
Terminal Durability: 5,000 Cycle
Contact Normal Force: 0.3N min. per pin
Open & Lock Durability: 100 cycles
Open & Lock Force: 1.5N ~ 20N with card
ENVIRONMENTAL
Operating temperature range: -40°C~+105°C
Storage temperature range: -40°C~+105°C
SOLDER ABILITY
Recommended IR Reflow Temperature: 260°C
RoHS compliant products
- Attend Technology product -
