Product specifications
Attend 115S-ACA0

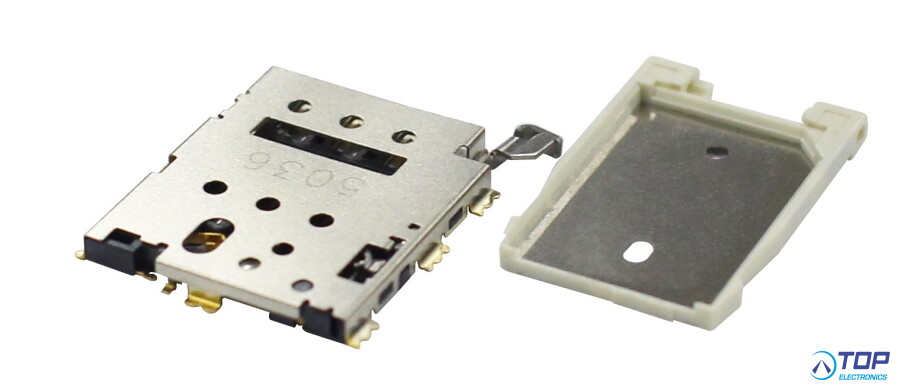

Nano SIM Socket, Top Mount, Eject Type, H1.35 with Tray
ELECTRICAL
Current Rating: 0.2A max.
Voltage Rating: 10VAC/DC
Contact Resistance: 50mΩ
Insulation Resistance: 1000MΩ
Dielectric Withstanding Voltage: 500VAC
MECHANICAL
Durability: 2,000 Cycle
Tray Insertion Force: 20N max.
Tray Extraction Force: 3N min.
Contact Normal Force: 40gf min. per pin
ENVIRONMENTAL
Operating temperature range: -30°C~+85°C
Storage temperature range: -40°C~+85°C
SOLDER ABILITY
Recommended IR Reflow(Wave Soldering) Temperature: 260°C
RoHS compliant products
- Attend Technology product -
