Product specifications

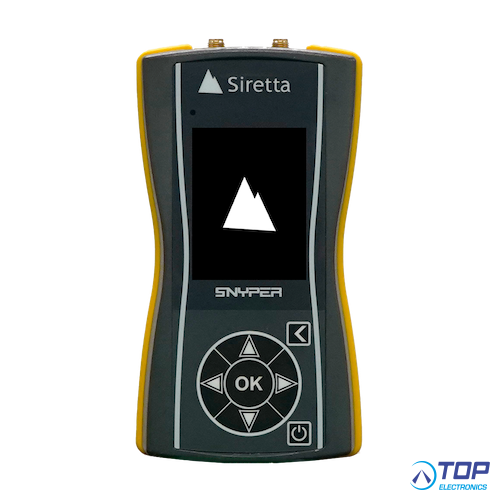

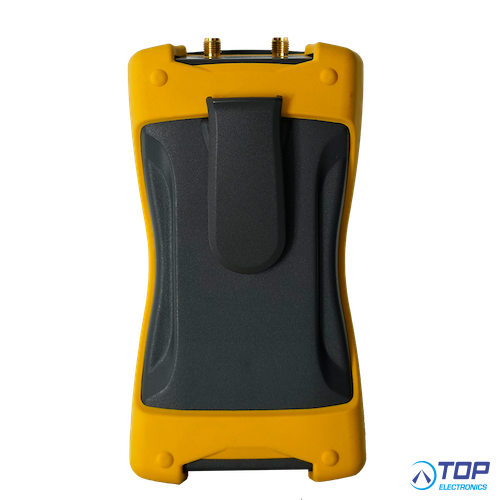

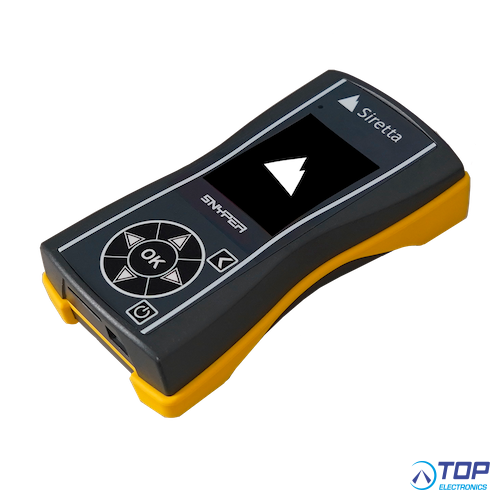

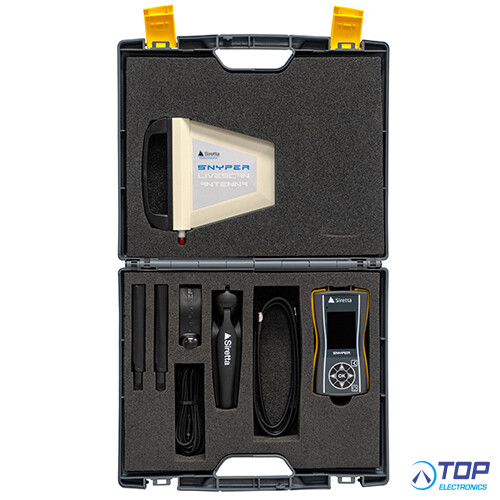

SNYPER-5G Graphyte (GL) - Network Signal Analyser & Data Logger with Accessories and Hard Carry Case
The SNYPER-5G Graphyte (GL) is a high performance, multi-language network signal analyser and cellular signal logger, dedicated to surveying and logging the 5G/NR 4G/LTE , LTE-Cat M, NB-IoT & 2G/GSM networks.
The unit can be left to conduct sequential surveys in a fixed location and automatically saving them. Four types of survey can be performed: a “FULL” survey (5G, 4G or CAT-M, NB-IoT, GSM combined), or a single selected technology only.
The SNYPER-5G Graphyte is capable of detecting 5G SA Cells without requiring a 5G SIM Card. However, if you require analysing 5G NSA Cells, a valid 5G SIM card is required. The SNYPER device will then display the 5G NSA cells of the network that the SIM card operates on. This is due to the specific way 5G NSA operates.
SNYPER-5G Graphyte (GL) can save a large amount of surveys each with different logging options and all survey results can be downloaded to a PC and displayed in a HTML graphical format to clearly show the logged detail over the survey session. This can identify unreliable base-stations & intermittent cellular service which is not possible with spot surveys. The full breakdown for the HTML summary graphs are displayed in corresponding CSV files (Summary and full detail files).
The SNYPER-5G Graphyte (GL) also incorporates Siretta’s leading liveSCAN feature, which allows you to select a base-station signal immediately after a survey, conduct a liveSCAN logging session which can later be analysed in a CSV logged recording.
The SNYPER-5G Graphyte (GL) is an invaluable tool for understanding local network performance over hours, days and weeks to assist in the selection of reliable mobile network operators before cellular installations.
- 28 Supported Bands 5G NR
- 31 Supported Bands 4G LTE
- 18 Supported Bands LTE-M
- 17 Supported Bands NB-IoT
- 4 Supported Bands 2G / GSM / GPRS
SUMMERY:
- Enhanced cellular surveying & sequential logging of new and existing installations on 5G. 4G, Cat M, NB-IoT and 2G networks
- 5G NSA Cells Identified (Based on USER SUPPLIED SIM)
- User selectable survey logging options to determine most suitable & reliable mobile operator
- Evaluate “preferred” MNO’s performance over time
- Determines “hotspots” & assist with antenna alignment, through Siretta’s liveSCAN feature
- Results are reported in CSV, graphical HTML format & Print to PDF
- Save 1000’s of logged surveys with multiple liveSCAN logs
-- Siretta product --
