October 8, 2024

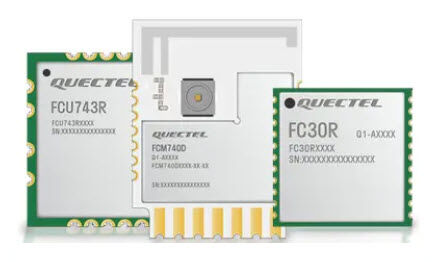

Quectel announced the introduction of 3 additional short-range modules to its portfolio. The modules are the FC30R, a cost-effective, industrial-grade Wi-Fi module; the FCU743R, featuring Wi-Fi 4 and Bluetooth 5.2 capabilities; and the FCM740D, an MCU with Wi-Fi 4 and Bluetooth 5.2. These modules enable customers to bring IoT devices to market more cost-effectively and with faster time to market.
Wi-Fi & Bluetooth FC30R
The FC30R is an ultra-compact, cost-effective industrial-grade Wi-Fi module that supports IEEE 802.11 b/g/n standards. Measuring just 12.0mm × 12.0mm × 2.1mm, it is perfect for size-sensitive applications. It can be seamlessly integrated with Quectel 5G modules (RT620T series), 4G modules (EG25 series, AG35 series, EG95 series, EC21 series, EC25 series, EC20 series, EC200A series, EC200R series, EC300R-LA series), and other application processors (NXP, ST, TI, Ambarella, etc.), making it suitable for a wide range of M2M applications including EV chargers, mobile hotspots, on-board diagnostics (OBD), gateways and industrial PDAs.
Summery of the FC30R
Wi-Fi 4 module
Max. data rate of 150 Mbps
LCC form factor
12.0 mm ×12.0 mm ×2.1 mm
0.58 g
Operating temperature range of -30°C to +85°C
Wi-Fi & Bluetooth FCU743R
The FCU743R is a USB interface, high-performance Wi-Fi 4 and Bluetooth 5.2 module that supports the 2.4 GHz and 5 GHz Wi-Fi bands and can realize high-speed, low-power WLAN wireless transmission with a maximum data transmission rate of up to 150Mbps. With an ultra-compact size of 13.0mm × 12.2mm × 2.0mm, the module is ideal for size-sensitive applications.
Surface-mount technology (SMT) makes FCU743R an ideal solution for durable and rugged designs and the low profile and small size of LCC package ensure that it can be easily embedded into size-constrained applications and provide reliable connectivity with these applications.
Summery of the FCU743R
Wi-Fi 4 module
Max. data rate of 150Mbps
LCC form factor
13.0mm × 12.2mm × 2.0mm
0.56g
Operating temperature range of -20°C to +70°C

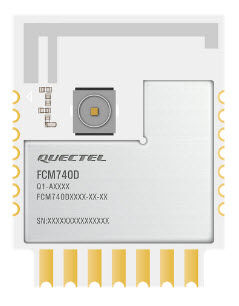

Wi-Fi & Bluetooth FCM740D
The FCM740D is an MCU Wi-Fi 4 and Bluetooth 5.2 module, that boasts a high-performance processor with a frequency of up to 120MHz and supports IEEE 802.11b/g/n protocol and BLE 5.2. The module features built-in 256KB SRAM and 2MB/4MB flash (optional), complies with WPA-PSK, WPA2-PSK and WPA3-SAE security standards. The FCM740D has an LCC + DIP form factor with an ultra-compact size of 20.3mm × 15.8mm × 2.7mm, which optimizes the size and cost for customers.
With a variety of low-power modes and long connection keep-alive mechanisms, the module is perfect for smart home, industrial IoT, consumer electronics and other applications, especially home appliances, small-sized smart lighting and other applications and IoT devices with high temperature requirements, such as HVAC, dimmer, light strips, smart sockets.
Summery of the FCM740D
MCU Wi-Fi 4 & BLE 5.2 module
DIP+LCC form factor
20.3 mm × 15.8 mm × 2.7 mm
1.06 g
Operating temperature range: -40°C to +105°C
Quectel’s IoT modules are developed with security* at the core. From product architecture to firmware/software development, Quectel incorporates leading industry practices and standards, mitigating potential vulnerabilities with third party independent test houses and have incorporated security practices like generating SBOMs and VEX files** as well as performing firmware binary analysis into the entire software development lifecycle.
*
At Quectel, product security isn’t an afterthought — it’s in our DNA. Recognizing the pivotal role IoT modules play in shaping our connected world, we’re committed to implementing robust security measures at every stage of our product lifecycle. With our multifaceted approach to security, Quectel’s IoT modules are designed to adhere to industry best practices and standards, while also staying ahead of the evolving security landscape.
In line with our commitment to providing top-notch security for our modules, we have joined forces with Finite State, the US-based leader in enterprise software supply chain risk management. Through this collaboration, we aim to reinforce the security of our modules by subjecting them to rigorous security testing, improving software supply chain visibility, and implementing comprehensive software risk management measures.
By addressing the ever-changing regulatory landscape and delivering verifiable information on secure software development practices, this partnership offers our customers the peace of mind they deserve. Our dedication to ensuring compliance and security within Quectel’s product suite is unwavering, emphasizing transparency, regulatory adherence, and a steadfast pursuit of industry-leading security standards. The alliance with Finite State is a vital component of our broader initiative to achieve these goals and solidify our customers’ trust in our products.
Our dedicated customer support team is readily available to address any security concerns or inquiries you may have. In the event of a security incident, our established incident response plan facilitates swift investigation, containment, and recovery.
**
Would you like to generate SBOMs and VEX files, just connect with us.
