Three robust, flexible 5G terminal mount antennas - Quectel

December 27, 2024

Quectel Wireless Solutions has introduced three robust, flexible 5G terminal mount antennas. The antennas offer high gain and efficiency as well as simplified design and deployment flexibility.

YECT002W1A 5G terminal mount external antenna
The YECT002W1A is an ultra-wide band 5G external antenna that provides broad coverage from 600-5000MHz while offering backward-compatibility to support 3G, 4G and 2G networks as well as LTE Cat-M and narrowband IoT (NB-IoT). With dimensions of 209mm x 42mm x 6mm, the antenna is terminated with SMA type male connectors to help designers achieve the optimum antenna position. The antenna is both RoHS and REACH compliant.

Ideal for use cases such as access points, terminals and routers, high-speed video, real-time streaming and public transportation, the YECT002W1A features a hinged structure so it can avoid other objects by rotating in different directions when mounted on terminals. In addition, the antenna has a dipole design to work with various ground plane sizes or in free space.

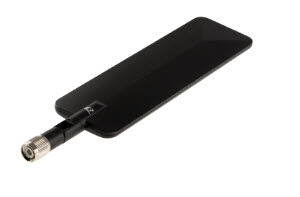

YECT102WAAH 5G terminal mount rubber dipole external antenna
The YECT102WAAH is another ultra-wide band 5G external antenna supporting coverage from 600-960MHz, 1710-2690MHz and 3300-6000MHz. Ideal for applications where the antenna needs to be discreet, this low profile, terminal mount omni-directional antenna is simple to use and features maximized durability thanks to its IP66-rated PC enclosure. The Quectel YEXCT102WAAH can be utilized in harsh environments thanks to its UV resistant (UL 746c f1) and flame resistant (UL 94 V-0) enclosure.

Measuring 231mm x 54.5mm x 14.5mm, the YECT102WAAH has a hinged TNC male connector to provide flexibility in deployment and to ensure the antennas can avoid other antennas or objects. Use cases include access points, terminals and routers, high speed video and streaming, and public transportation.

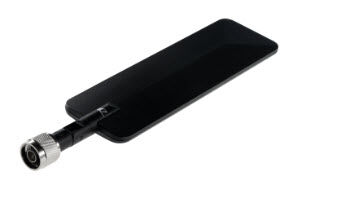

YECT103W7AH 5G terminal mount rubber dipole external antenna
The YECT103W7AH is an ultra-wide band 5G terminal mount external dipole antenna that also operates in the 600-960MHz, 1710-2690MHz and 3300-6000MHz frequency bands. Both RoHS and REACH compliant and featuring an IP66 housing, the Quectel YECT103W7AH measures 233mm x 54.5mm x 20mm. The antenna is terminated with a hinged N male connector and can be used in harsh environments thanks to its robust UV resistant and flame-resistant enclosure.

All three antennas offer robust, ultra-wide band external 5G capabilities and backed by Quectel’s comprehensive antenna design support. This includes simulation, testing and manufacturing for custom antenna solutions to meet customers’ specific application needs. Quectel’s regional R&D centers are located to ensure quick responses to customer requirements.
