Ultra low jitter oscillators - EQHJ range - 5.0MHz to 50.0MHz -EuroQuartz
November 24, 2020
The EQHJ range is designed for high end audio and networking applications where waveform accuracy is important.
NEW ULTRA LOW JITTER OSCILLATORS
New features

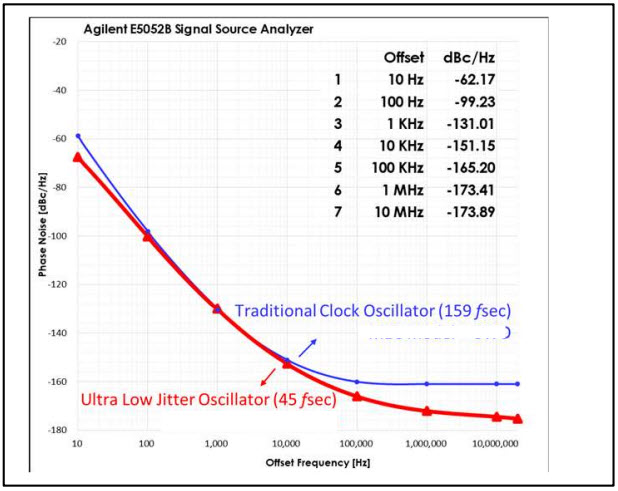

- Ultra low phase jitter 45fSec typical
- Package sizes: 7x5/5x3.2/3.2x2.5/2.5x2.0mm
- Output waveform – CMOS
- Frequency Range: 20MHz to 50MHz
- Supply Voltage: 1.8V/2.5V and 3.3V
EQHJ Series Ultra Low Jitter Oscillators
SMD clock oscillator with ultra-low Phase Jitter, 50fs typical
LVCMOS output
Supply voltage 1.8, 2.5 or 3.3 Volts
Frequency stability from ±25ppm over -40° to +85°C
Available in three standard SM packages.
- Ultra-low Phase Jitter, 50fs typical
- LVCMOS
- Drop-in replacement for standard ocillators
- Supply voltage 1.8, 2.5 or 3.3 Volts
- Available in 3.2 x 2.5mm. 5.0 x 3.2mm or 7 x 5mm SMD packages
