Product specifications
This Evaluation board is NRND
Apollo parts APOLLO512-KBR and APOLLO512-KCR will still be produced for production, but Not Recommended for New Designs , please considder newer Apollo 2 or 3 products

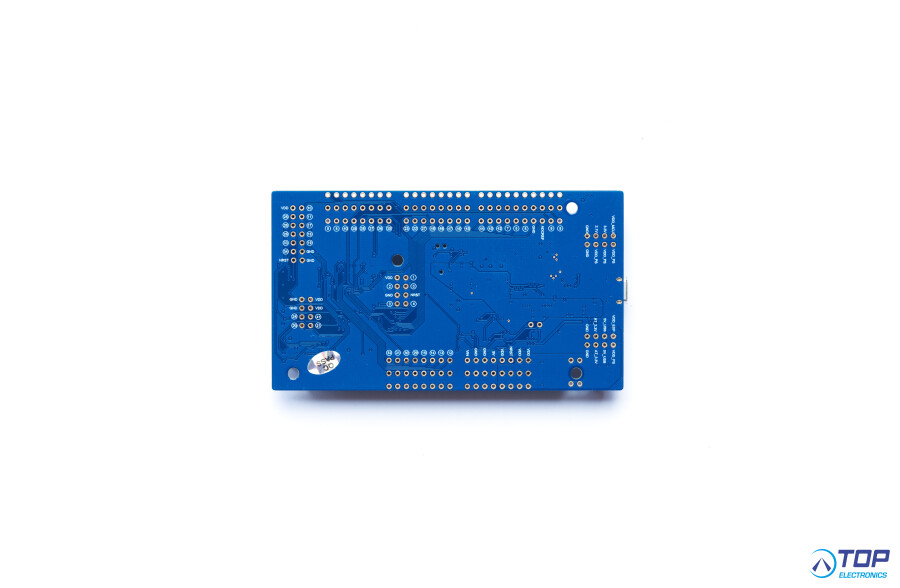

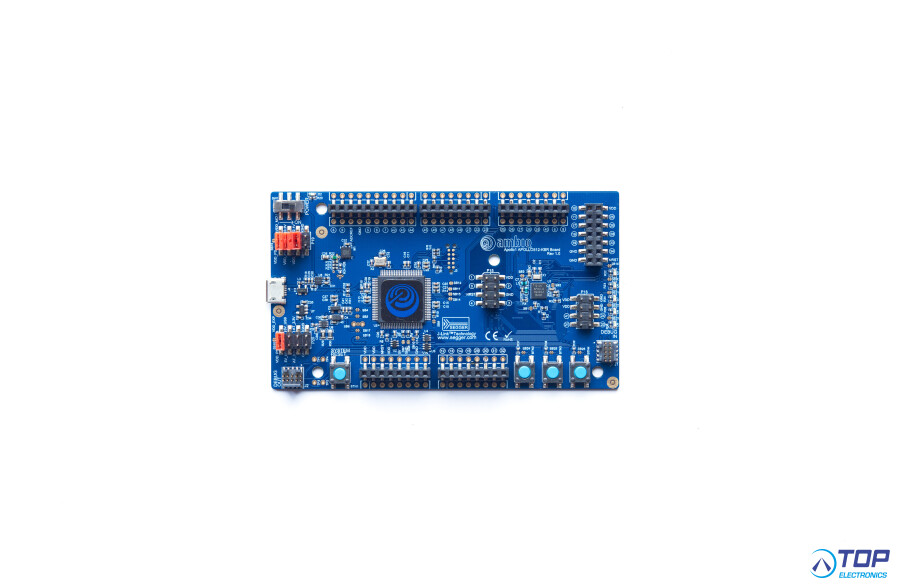

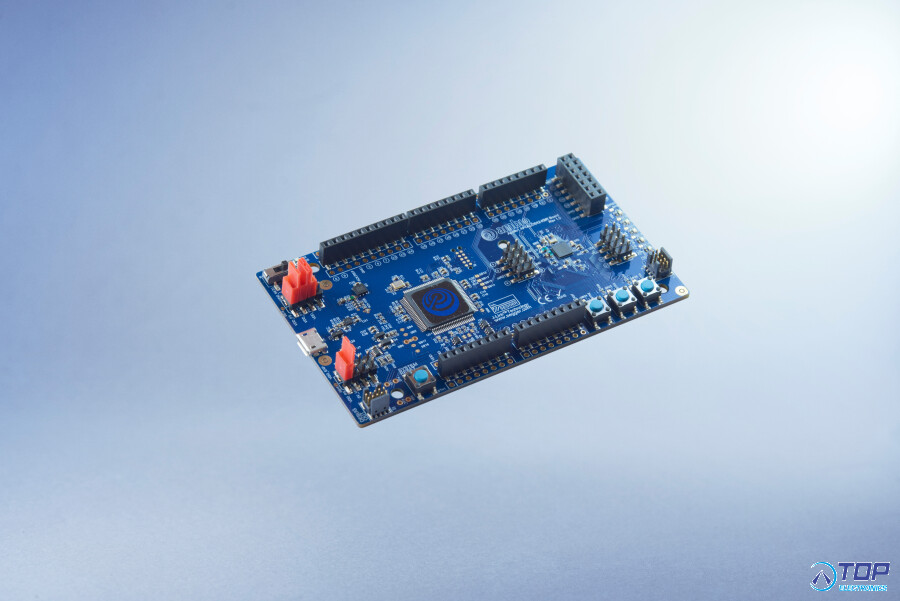

Apollo EVB - Ultra-Low Power System on Chip
The Apollo SoC Family is an ultra-low power, highly integrated System on Chip designed for battery-powered devices including wearable electroncis, activity & fitness monitors, and wireless sensors.
By combining ultra-low power sensor conversions electronics with the powerfull Arm® Cortex®-M4 processor with Floating Point Unit (FPU), the Apollo SoC enables complex sensor processing tasks to be completed with unprecedented battery life. Weeks, months, and years of battery life are achievable while doing complex context detection, gesture recognition, and activity monitoring. The Apollo SoC takes full advantage of Ambiq's patented Subthresholld Power Optimzed Technology (SPOT®) Platform, setting a new industry benchmark in low power design.
The Apollo SoC integrates up to 512KB of flash memory and 64 KB of RAM to accomodate radio and ensor overhead while still leaving plenty of space for application code. This System on Chip also includes serial master and UART ports for communicating with radios and sensors including accelerometers, gyroscopes, and magnetometers.

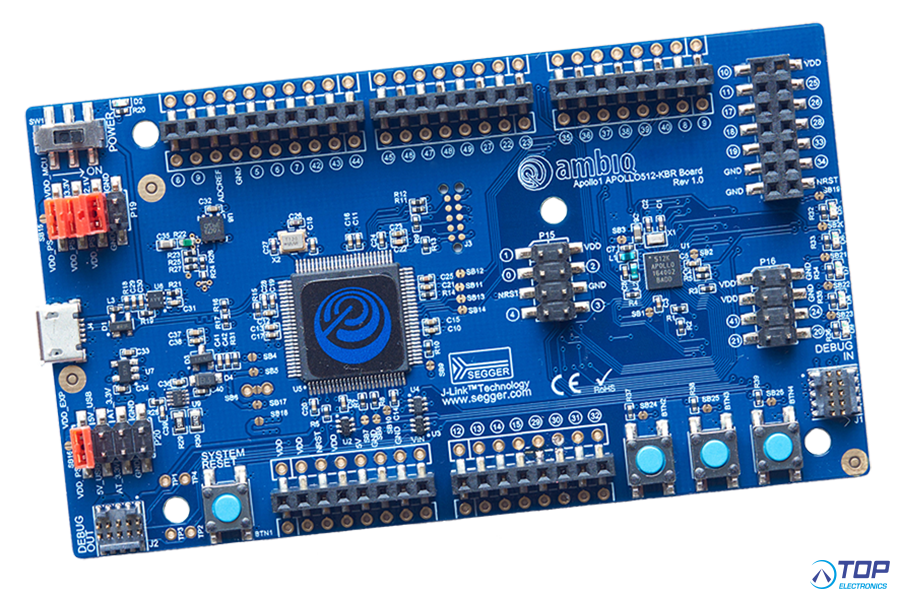

The EVB additional features:
- Low power reference design
- Apollo1 SoC in the BGA package (APOLLO512-KBR)
- Multiple power/clock options
- Micro USB connector for power/download/debug
- Segger J-Link debugger
- Debugger-in / debugger-out ports
- Five user-controlled LEDs
- Three push buttons for application use, plus a reset push button
- Power slide switch with LED power indicator
- Five 8-12 pin Arduino-style headers for pin/power access to shield board(s)
- Multiple test points for power measurements
- CE Mark and RoHS compliant
