Product specifications

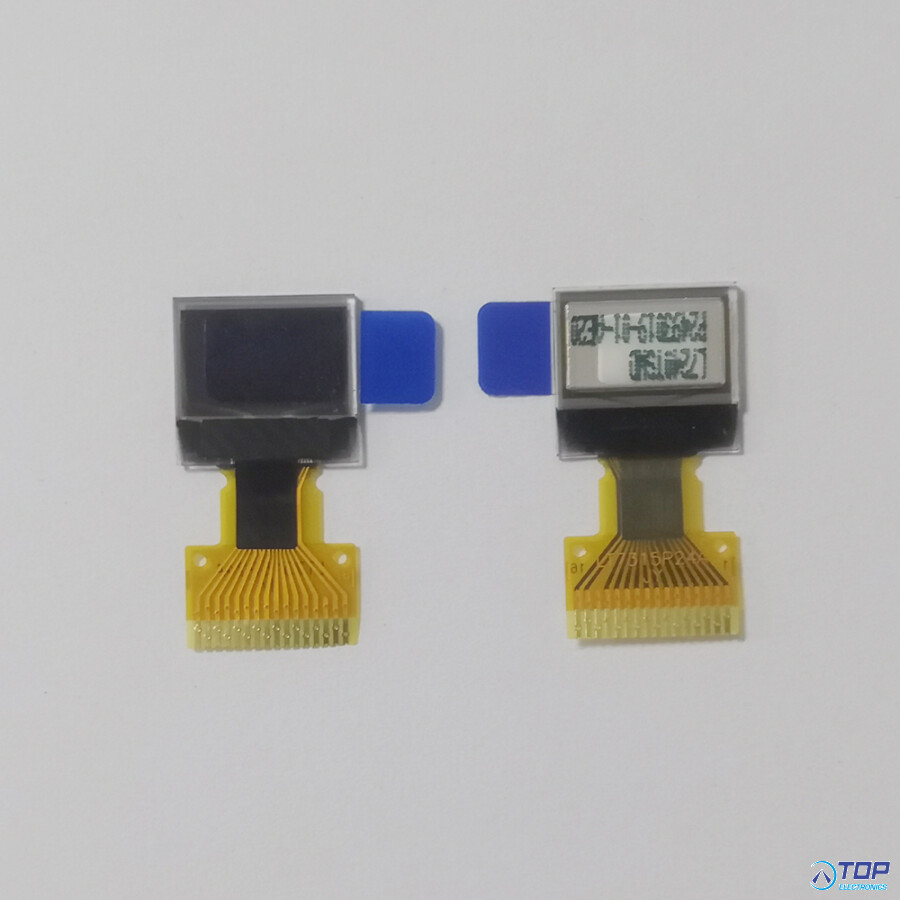

This 0.42” OLED has 72 x 40 pixels within an active area of 9.196mm x 5.18mm and an overall dimension of 12.0mm x 11.0mm x 1.2mm
Solder straight on, with 16 pin connection
Built in SSD1306 allows for both SPI & I2C interfacing
White Colour with a minimum brightness of 120cd/m2
Operating Temperature: -30C to +70C / Storage Temperature: -40C to +70C
--- Hicenda product ---
