Product specifications

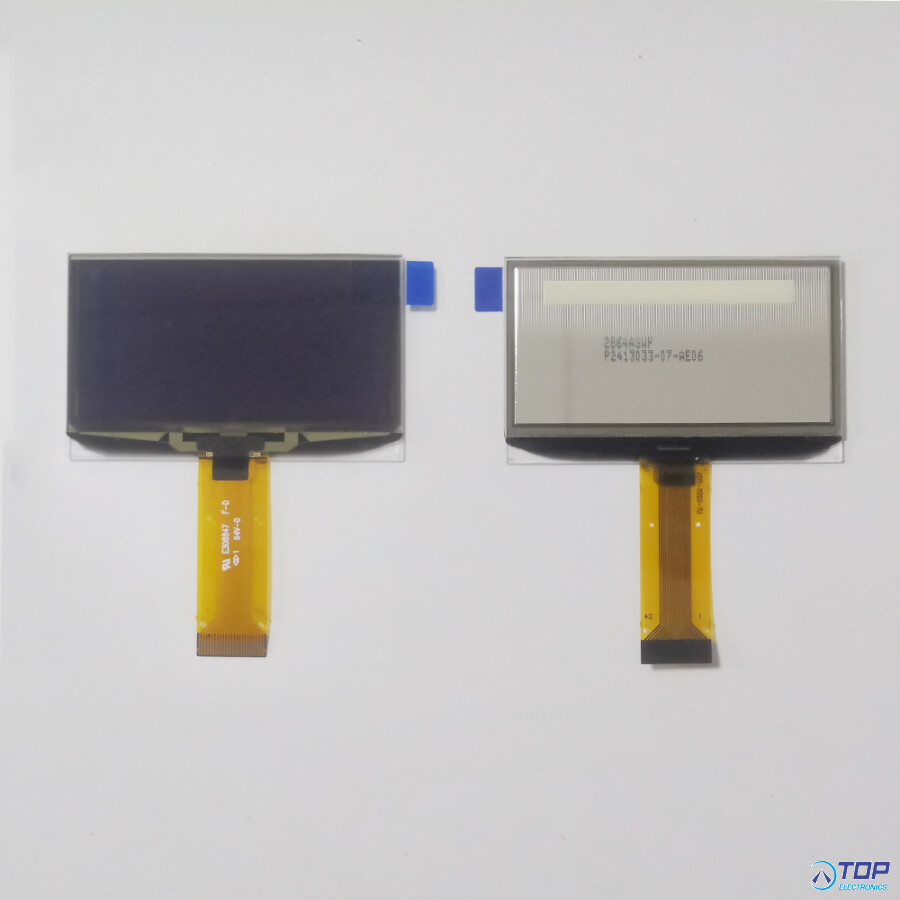

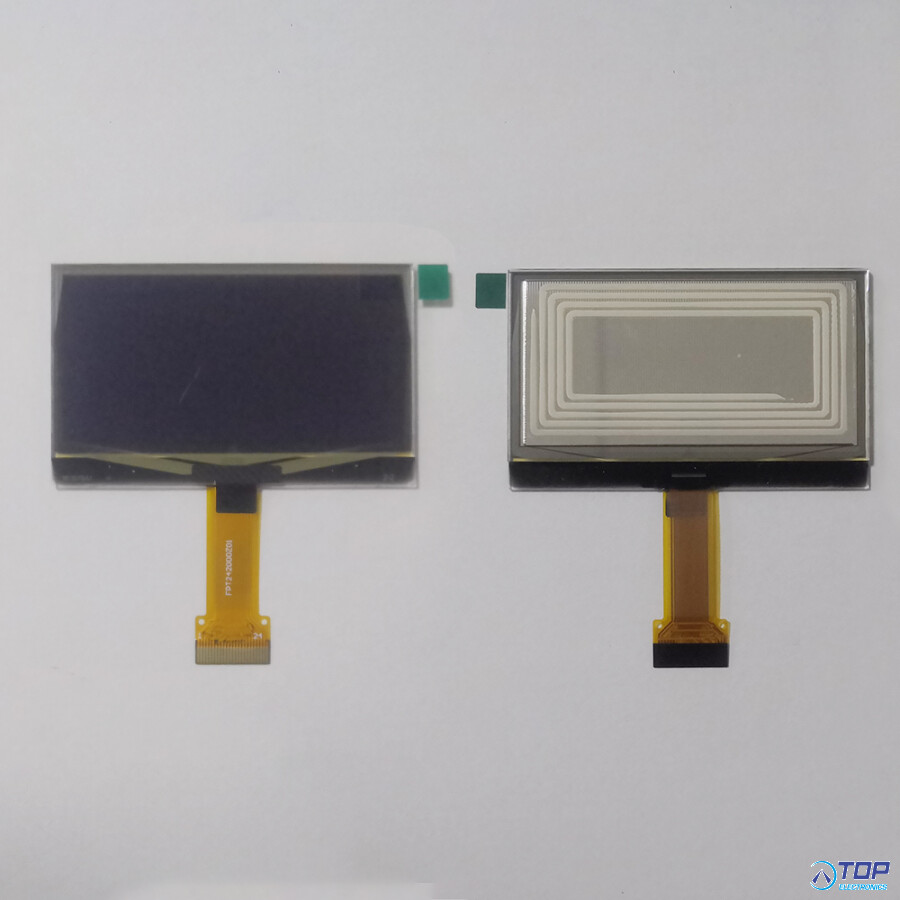

This 2.42” OLED has 128 x 64 pixels within an active area of 55.01mm x 27.49 mm and an overall dimension of 60.50mm x 37.0mm x 2.0mm
Requiring a ZIF connector, with 24 pin connection
Built in SSD1322 allows for I2C/SPI & Parallel interfacing
White Colour with a minimum brightness of 80cd/m2
Operating Temperature: -30C to +70C / Storage Temperature: -40C to +80C
--- Hicenda product ---
