Product specifications

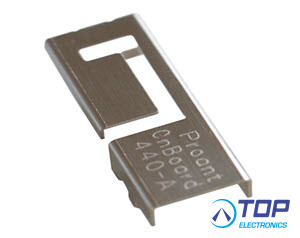

ProAnt 440
OnBoard SMD 2400, 2.4Ghz ISM band Antenna
Small antenna for embedded products on the 2.4GHz ISM band, suitable for applications in WLAN/Wifi, Bluetooth, Zigbee, RFID, WirelessHART etc.
The OnBoard SMD concept offers features like:
- SMD compatibility
- Tape on reel delivery
- Low loss material
- PCB on-ground implementation
- Simple fine tuning by matching network
- RoHS compliance
- Low cost
Technical data
- Frequency: 2400 - 2500 MHz
- Impedance: 50 ohm
- Return loss: < -10 dB
- Total efficiency: > 75% (-1.25dB)
- Dimensions: 13.8 x 6.0 x 3.5 mm (0.541 x 0.236 x 0.138 in)
- Assembly: pick and place
- Soldering: reflow or equivalent
- Packing: Tape and reel
- Temperature: -40 to +125 °C
- RoHS status: Compliant with EU directive 2011/65/EU (RoHS 2)
- Shelf life: 10 years MSL Level 1, unlimited
- Mechanical resistance: Immunity to vibrations IEC/EN 60068-2-6, Fc test Immunity to shock IEC/EN 60068-2-27, Ea test
- ProAnt AB product -
