Product specifications

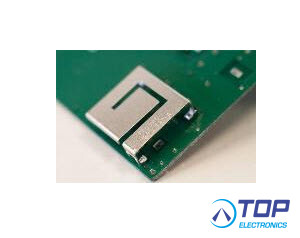

ProAnt 430
OnBoard Antenna, SMD, GPS/GLONASS
Small antenna for embedded products on the GPS / GLONASS band L1. The antenna provides omnidirectional radiation properties suitable for many applications with arbitrary sky angle.
The OnBoard SMD concept offers features like:
- SMD compatibility
- Tape on reel delivery
- Low loss material
- PCB on-ground implementation
- Simple fine tuning by matching network
- RoHS compliance
- Low cost
Technical data
- Frequency 1575 - 1602 MHz
- Impedance 50 ohm
- Return loss < -10 dB
- Total efficiency > 65% (-1.9dB)
- Dimensions 12.5 x 12.4 x 3.3 mm
- Assembly pick and place
- Soldering reflow or equivalent
- Packing Tape and reel
- Temperature -40 to +85 °C
